Belimo AVK24A-3-RE - linear actuator for globe valves

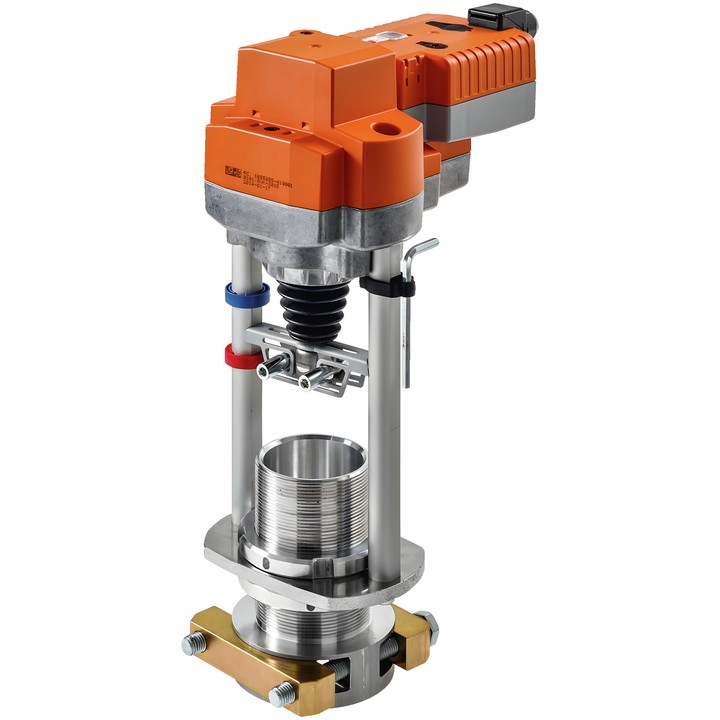

Belimo AVK24A-3-RE actuator

RetroFIT+ linear actuator for 2- and 3-way globe valves. The integrated capacitors are charged during operation; if the power supply is interrupted, the stored energy moves the valve to the selected safety position.

Key features and technical data

• Actuator force: 2000 N; stroke: 32 mm.
• Rated voltage: AC 24 V; frequency: 50/60 Hz; voltage range: AC 19.2...28.8 V.
• Control: 3-point.
• Motor running time: 150 s / 32 mm; safety function running time: 35 s / 32 mm.
• Safety position: stem retracted or extended, set using the POP rotary switch; power-failure ride-through time (PF): 2 s.
• Power consumption during operation: 4.5 W; at rest: 2 W; wire sizing power: 9 VA.
• Power and control connection: 4 mm² terminals (cable ø4...10 mm).
• Manual adjustment by push-button; mechanical position indicator for 5...32 mm stroke.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

The RetroFIT+ version is designed for installation on valves from various manufacturers using universal valve neck and stem adapters. With 3-point control, ensure that the pulse controller stops when the end position is reached.
