Belimo AVK24A-3-TPC - linear actuator for globe valves

Belimo AVK24A-3-TPC

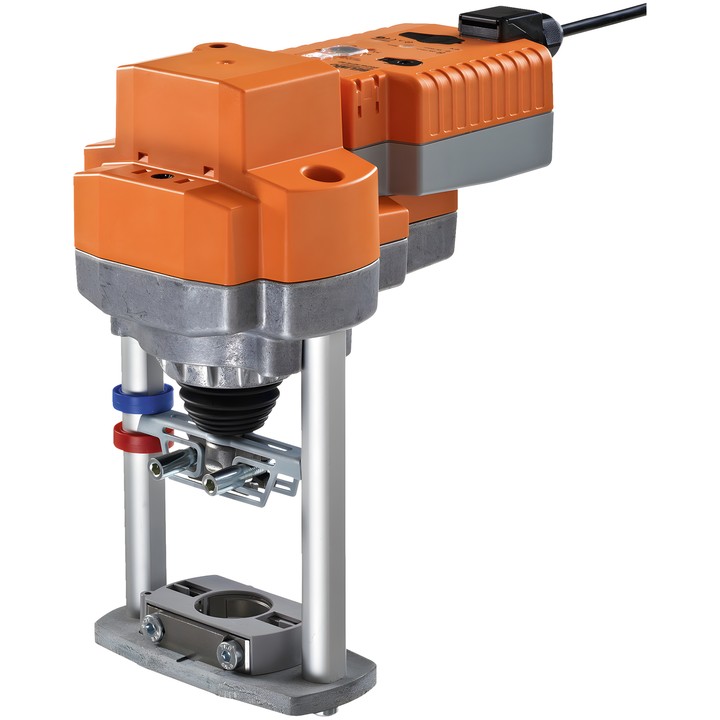

Linear actuator for 2- and 3-way globe valves. During normal operation, the built-in capacitors are charged; if the power supply is interrupted, the stored energy moves the valve to the selected safety position. This position can be set using the POP knob.

Key features and technical data

• Actuator force: 2000 N; stroke: 32 mm.
• Rated voltage: AC 24 V; frequency: 50/60 Hz; voltage range: AC 19.2...28.8 V.
• Control: 3-point.
• Motor running time: 150 s / 32 mm; travel time to the safety position: 35 s / 32 mm.
• Power reserve time (PF): 2s.
• Power consumption during operation: 4.5 W; at rest: 2 W; for wire sizing: 9 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm²; terminal 4 mm².
• Manual adjustment by push-button; mechanical position indicator for 5...32 mm stroke.
• IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

The actuator is intended for stationary heating, ventilation and air-conditioning installations. With 3-point pulse control, the controller must be stopped when the end position is reached.
