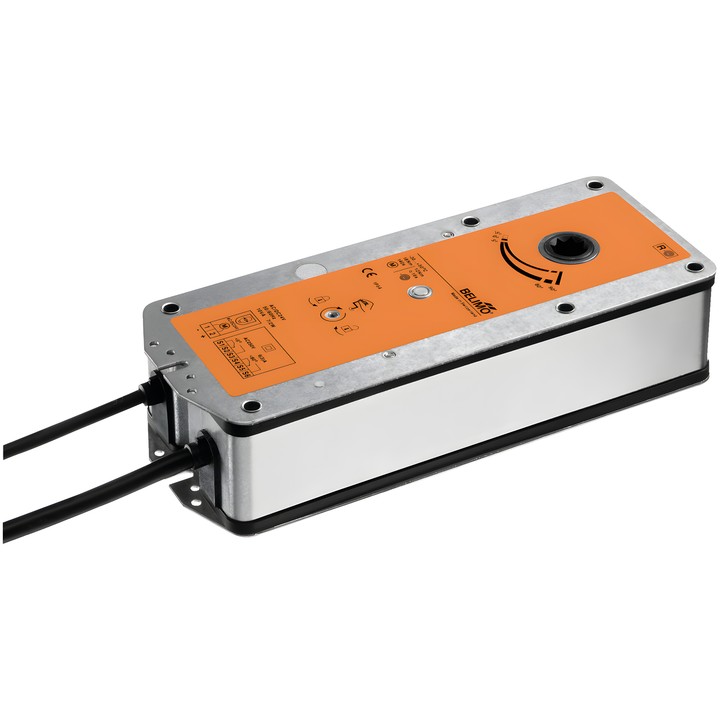

Belimo BF48-5 – actuator for fire and smoke dampers

Spring-return actuator designed for 90° fire and smoke dampers in ventilation and air-conditioning systems. During operation, the motor moves the damper and tensions the return spring; when the power supply is interrupted, the spring’s energy moves the damper to the safety position.

Key technical data

• Nominal voltage: AC/DC 48 V; frequency: 50/60 Hz.
• Control: Close/Open.
• Motor torque: 18 Nm; safety function torque: 12 Nm.
• Motor running time: <120 s / 90°; safety function running time: 16 s @ 20°C.
• Power consumption during operation: 11 W; in the resting position: 3.5 W; for cable sizing: 16 VA.
• Auxiliary switches: 2x SPDT; switching points: 5° / 80°.
• Power and control connection: 1 m cable, 2x 0.75 mm² (halogen-free); auxiliary switch connection: 1 m cable, 6x 0.75 mm² (halogen-free).
• Mechanical connection: 12x12 mm form-fit connection, non-through hollow shaft.
• Angle of rotation: max. 95°; motor direction of movement selected by L/R mounting.
• Manual operation with position stop; mechanical position indicator.
• IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Included: hand crank, indicator, protective cover and insert for the 12/10 mm form-fit connection. According to the documentation, the actuator is adapted and mounted on the damper by the damper manufacturer; Belimo supplies it directly to manufacturers of safety dampers.
