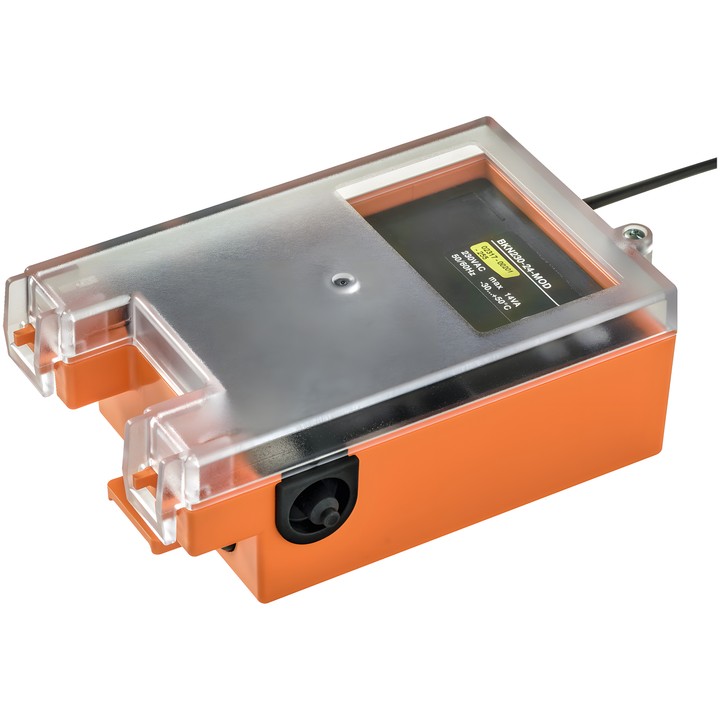

Belimo BKN230-24-MOD - communication module with power supply for fire dampers

Name: Belimo BKN230-24-MOD - communication module with power supply for fire dampers
Brand: Belimo
SKU: BKN230-24-MOD
Price: 1307.17 PLN
Availability: BackOrder

Belimo

zł1,307.17

VAT included

zł1,062.74 tax excluded

Communication module with power supply for 24 V fire damper actuators with a plug-in connector. Supports BACnet MS/TP or Modbus RTU (RS-485) communication and is powered by AC 230 V.

Supplies the actuator with DC 24 V via a plug-in connector and allows a smoke detector to be connected directly. LEDs indicate actuator and communication status.

Delivery in approx. 14 days

Belimo BKN230-24-MOD

Communication module with power supply designed for fire damper actuators. Installed near the damper, it connects it to the supervisory system and supplies the actuator with DC 24 V via a plug-in connector.

Key features

BACnet MS/TP or Modbus RTU (RS-485) communication.
AC 230 V, 50/60 Hz supply via a cable with a Euro plug; voltage range AC 198...264 V.
DC 24 V actuator supply via a plug-in connector, with galvanic isolation.
Direct connection of an optoelectronic smoke detector without an additional power supply; connector for an external smoke detector: 24 V, max. 50 mA.
LEDs indicating actuator position and faults, as well as BACnet/Modbus communication.
Button to start a test and acknowledge a fault; DIL switches for communication parameterisation.
Compatible actuators: BFA24..-ST, BF24..-ST, BFN24..-ST, BFL24..-ST.

Technical data

Power consumption during operation: 3 W (operating position, including actuator).
Power rating for cable sizing: 14 VA (including actuator).
Degree of protection: IP40.
Ambient temperature: –20...50°C.
Typical response time: <100 ms.
