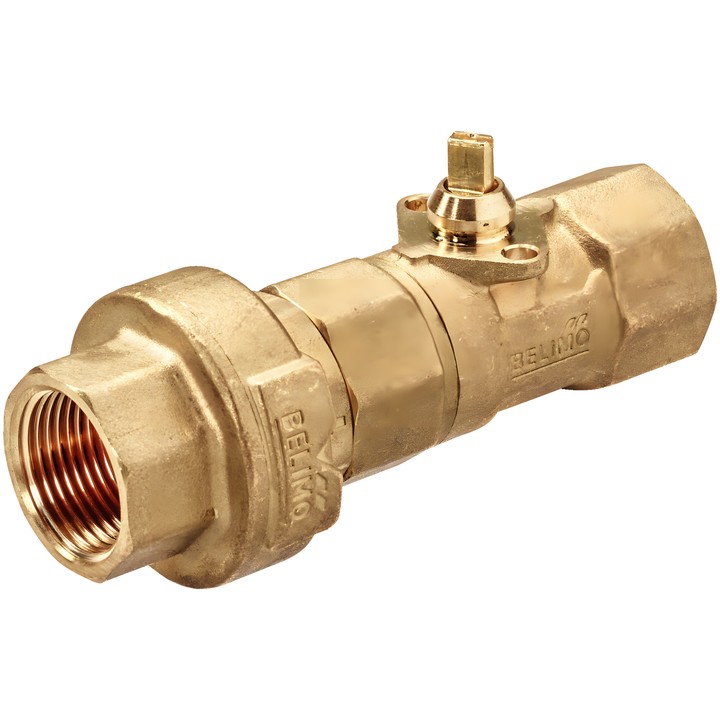

Belimo C215QFL-F - 2-way PI flow limiter valve

Name: Belimo C215QFL-F - 2-way PI flow limiter valve
Brand: Belimo
SKU: C215QFL-F
Price: 314.77 PLN
Availability: BackOrder

Belimo

zł314.77

VAT included

zł255.91 tax excluded

Belimo C215QFL-F 2-way PI flow limiter valve (PIFLV) for closed water systems. DN 15, PN 25, Rp 1/2" female thread, V'nom 1300 l/h.

Designed for on/off control on the water side of fan coil units and chilled ceilings. Medium temperature: 2...60°C [36...140°F].

Delivery in approx. 14 days

Belimo C215QFL-F – PI flow limiter valve

2-way PIFLV ball valve for closed water systems. The integrated limiter maintains a constant flow rate at a differential pressure of 20...280 kPa when the valve is open at an angle of 90°. The valve is designed for on/off control on the water side of fan coil units and chilled ceilings.

Key features and specifications

Pattern: 2-way; DN 15; PN 25.
Connection: Rp 1/2" female thread.
V'nom: 1300 l/h (0.36 l/s).
Medium: water; medium temperature: 2...60°C [36...140°F].
Differential pressure: ∆p 20...280 kPa; closing pressure: 520 kPa.
For quiet operation, a differential pressure of 50 kPa is recommended.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closure element: chrome-plated brass.
Rotation angle: 90°; permissible mounting position: from vertical to horizontal, with the stem not pointing downwards.

Observe the flow direction indicated by the arrow on the body. Installation in the return pipe is recommended.
