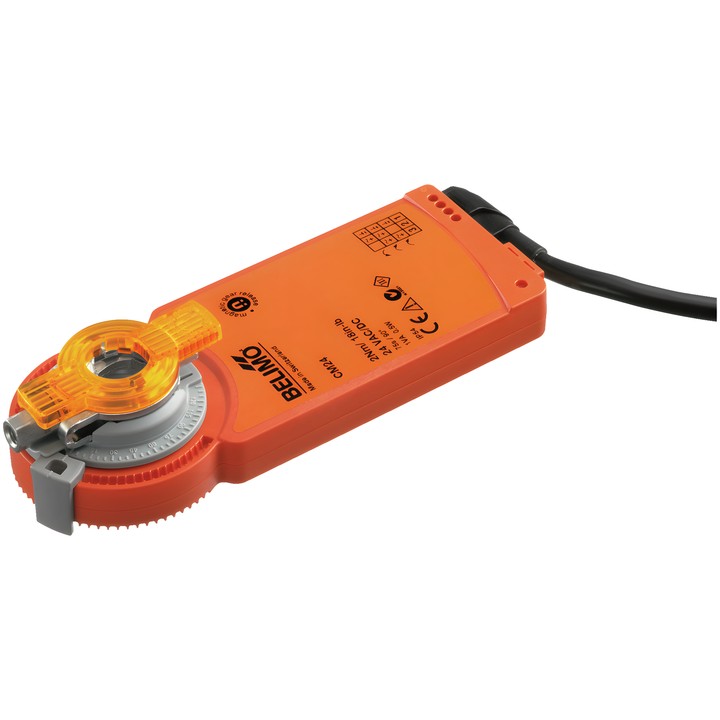

Belimo CM24G-R - damper actuator

Name: Belimo CM24G-R - damper actuator
Brand: Belimo
SKU: CM24G-R
Price: 801.96 PLN
Availability: OutOfStock

Belimo

zł801.96

VAT included

zł652.00 tax excluded

Belimo CM24G-R damper actuator with a torque of 2 Nm, AC/DC 24 V supply and Close/Open or 3-point control. Running time is 75 s / 90°.

Features a universal clamp 6...12.7 mm, manual override using a magnet and a mechanical position indicator. IEC/EN protection rating: IP66 when installed in accordance with the instructions.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24G-R damper actuator

Actuator designed to control dampers in stationary heating, ventilation and air-conditioning installations. According to the technical data sheet, it supports air dampers with an area of up to approx. 0.4 m².

Key features and specifications

Torque: 2 Nm; supply: AC/DC 24 V, 50/60 Hz.
Control: Close/Open or 3-point; running time: 75 s / 90°.
Motor direction: clockwise (cw); rotation angle: 0...287.5°.
Power consumption during operation: 0.5 W; at rest: 0.2 W; power for wire sizing: 1 VA.
Power and control connection: 1 m cable, 3x 0.75 mm²; mechanical connection: universal clamp 6...12.7 mm.
Manual override using a magnet; mechanical position indicator and rotation angle adjustment using mechanical stops.
IEC/EN protection rating: IP66; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Installation note: To ensure IP66, the back of the actuator must fit tightly against the damper housing. When installed rotated by 180° (with the front facing the damper housing), only IP54 protection is guaranteed.
