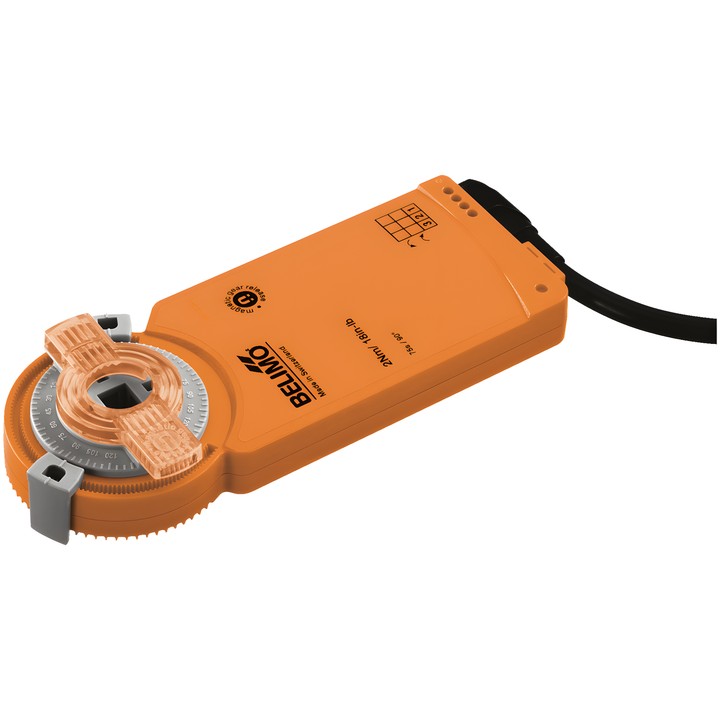

Belimo CM24G-SR-F-R - damper actuator

Name: Belimo CM24G-SR-F-R - damper actuator
Brand: Belimo
SKU: CM24G-SR-F-R
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

The Belimo CM24G-SR-F-R damper actuator has a torque of 2 Nm, an AC/DC 24 V supply and 2...10 V modulating control. Running time is 75 s / 90°, and the mechanical connection is a 8x8 mm form-fit connection.

The device provides a 2...10 V feedback signal and has an IEC/EN IP66 protection rating when installed in accordance with the manufacturer's requirements.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24G-SR-F-R – damper actuator

A modulating actuator designed to position dampers in technical building systems. According to the documentation, it is suitable for air dampers with an area of up to approx. 0.4 m².

Key features

Motor torque: 2 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Control range Y: 2...10 V; feedback signal U: 2...10 V.
Motor running time: 75 s / 90°; rotation angle: max. 95°, adjustable using mechanical end stops.
Motor direction: clockwise (cw); manual adjustment using a magnet.
Mechanical connection: 8x8 mm form-fit connection; mechanical position indicator.
Power and control connection: 1 m cable, 4x 0.75 mm².
Power consumption during operation: 1 W; at rest: 0.5 W; power rating for cable sizing: 1.5 VA.
IEC/EN protection rating: IP66; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Installation requirement: To ensure IP66, the rear of the actuator must fit tightly against the damper housing. When installed rotated by 180°, the documentation guarantees only IP54.
