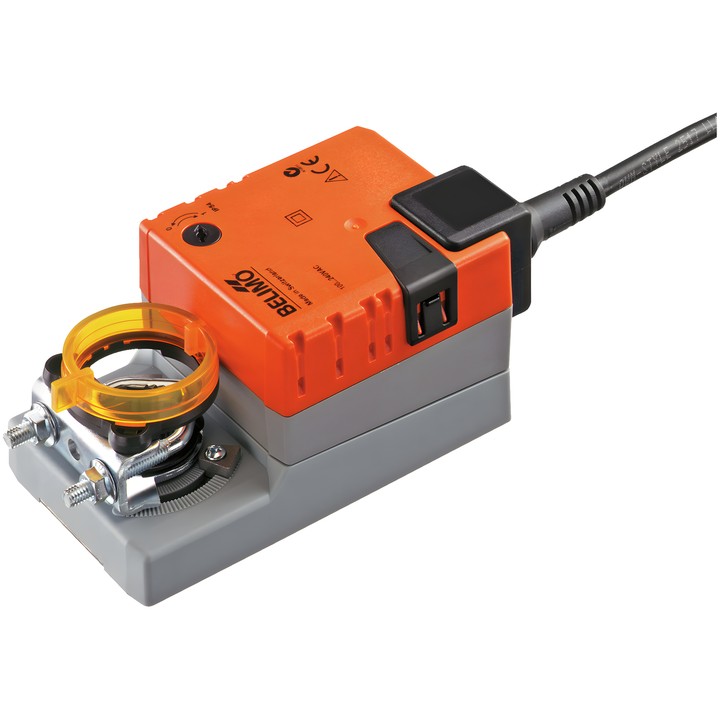

Belimo TMC230A - damper actuator

Belimo TMC230A - damper actuator

Belimo
zł476.90
VAT included
zł387.72 tax excluded

Belimo TMC230A is a damper actuator with a torque of 2 Nm, powered by AC 100...240 V. It supports Close/Open, 3-point control; motor running time is 35 s / 90°.

It features a universal shaft clamp for 6...20 mm, manual override by push-button and mechanical rotation angle limiters. IEC/EN protection rating: IP54.

Delivery in approx. 14 days
Share

Belimo TMC230A damper actuator

Actuator designed to regulate air dampers in building technical systems. The documentation specifies a damper size of up to approx. 0.4 m². It is mounted on the shaft using a universal clamp.

Key features and specifications

  • Motor torque: 2 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 35 s / 90°.
  • Rotation angle: max. 95°, with adjustable mechanical limiters on both sides.
  • Direction of movement selected by switch 0 (counterclockwise) / 1 (clockwise).
  • Manual override by push-button with locking option; mechanical position indicator.
  • Mechanical connection: universal shaft clamp 6...20 mm.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Power consumption during movement: 2 W; at rest: 0.5 W; sizing power for cable selection: 4 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    TMC230A
  • EAN13
    7630498115721

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.39MB)

Instrukcja montażu

Download (507.4KB)

EU Declaration of Conformity – TMC230A

Download (32.74KB)

Environmental Declaration – TM..

Download (72.21KB)
