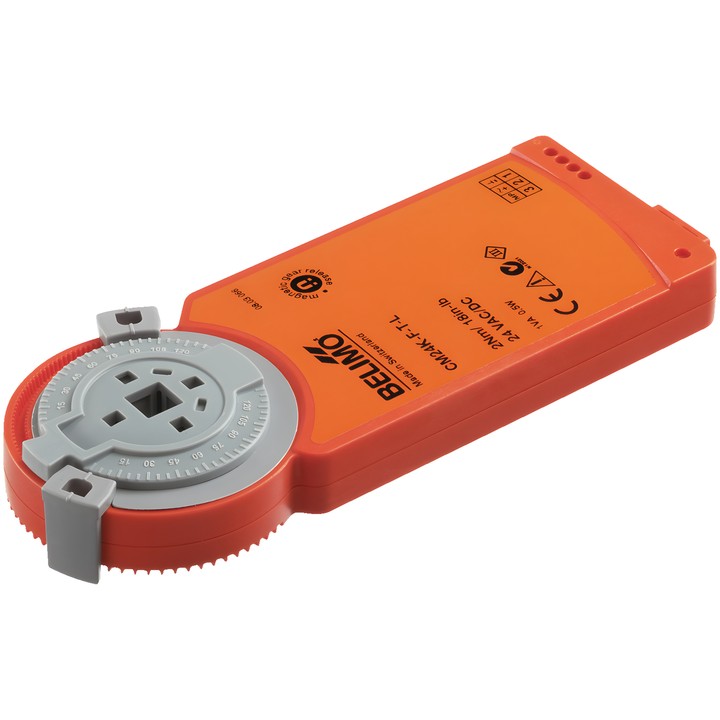

Belimo CM24K-F-T-L.2 - damper actuator with safety function

Name: Belimo CM24K-F-T-L.2 - damper actuator with safety function
Brand: Belimo
SKU: CM24K-F-T-L.2
Price: 683.88 PLN
Availability: OutOfStock

Belimo

zł683.88

VAT included

zł556.00 tax excluded

The Belimo CM24K-F-T-L.2 damper actuator is designed for use with the SKM230-T-B12 module. Torque 2 Nm, DC 24 V supply and Close/Open control via the module.

Running time is 75 s / 90°, rotation angle 95°, and the mechanical connection is a form-fit connection 8x8 mm.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24K-F-T-L.2 – damper actuator

Rotary actuator for positioning dampers in building services installations, designed for use with the SKM230-T-B12 module. The safety function is provided in combination with the module.

Key features

Torque: 2 Nm; damper size up to approx. 0.4 m².
Rated voltage: DC 24 V; rated voltage range: DC 19.2...28.8 V.
Control: Close/Open via the SKM230-T-B12 module.
Motor running time: 75 s / 90°; direction of rotation: counter-clockwise (ccw).
Rotation angle: 95°, with adjustable mechanical end stops on both sides.
Mechanical connection: form-fit connection 8x8 mm; manual adjustment using a magnet.
Power consumption in operation: 0.5 W; at rest: 0.2 W; power rating for cable sizing: 1 VA.
Electrical connection: terminals; solid copper wire 1,5 mm² or stranded wire 1,0 mm² (3-core).
Degree of protection IEC/EN: IP20; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

The set includes a Z-ARCM anti-rotation clip and a Z-MA magnet for disengaging the gear train. The product is supplied in a multipack of 20 pcs.

Brand

Belimo
Reference

CM24K-F-T-L.2

AC/DC voltage

DC 24 V
Power consumption (running)

0.5 W
Power consumption (holding)

0.2 W
Rated power

1 VA
Power supply control connection

Terminals Solid copper wire 1,5 mm² or stranded 1,0 mm² (3-core)
Control type

Close/Open
Protection rating

IP20
Manual override

Using a magnet
Running time (motor)

75 s / 90°
Ambient temperature

-30...50°C [-22...122°F]
Torque

2 Nm
Direction of movement - motor

counterclockwise rotation (ccw)
Rotational angle

95°
Mechanical connection

Form-fit connection 8x8 mm
