Belimo CM24K-F-T-R.2 - damper actuator with safety function

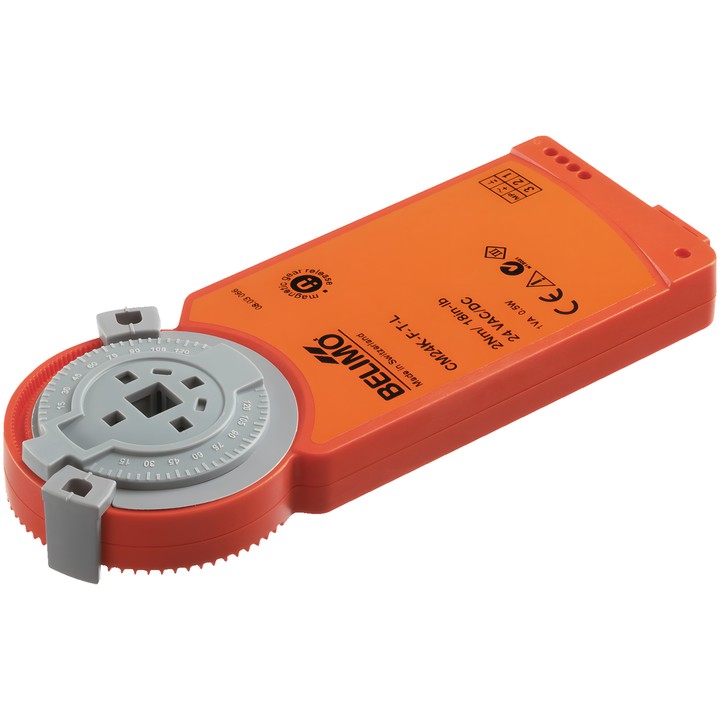

Belimo CM24K-F-T-R.2 actuator

Damper actuator for use with the SKM230-T-B12 module. Close/Open control is provided via the module; the device has a safety function. It is designed to regulate dampers in technical building systems.

Key features and specifications

• Torque: 2 Nm; nominal voltage: DC 24 V.
• Motor running time: 75 s / 90°; direction of movement: clockwise (cw).
• Rotation angle: 95°, with the option of limiting it on both sides using mechanical stops.
• Mechanical connection: 8x8 mm form-fit connection.
• Manual adjustment using a magnet.
• Power consumption during movement: 0.5 W; in the rest position: 0.2 W; power for cable sizing: 1 VA.
• Electrical connection: terminals; IEC/EN IP20 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft and secured against rotation with a Z-ARCM clip. A Z-MA magnet for manual adjustment is also included.
