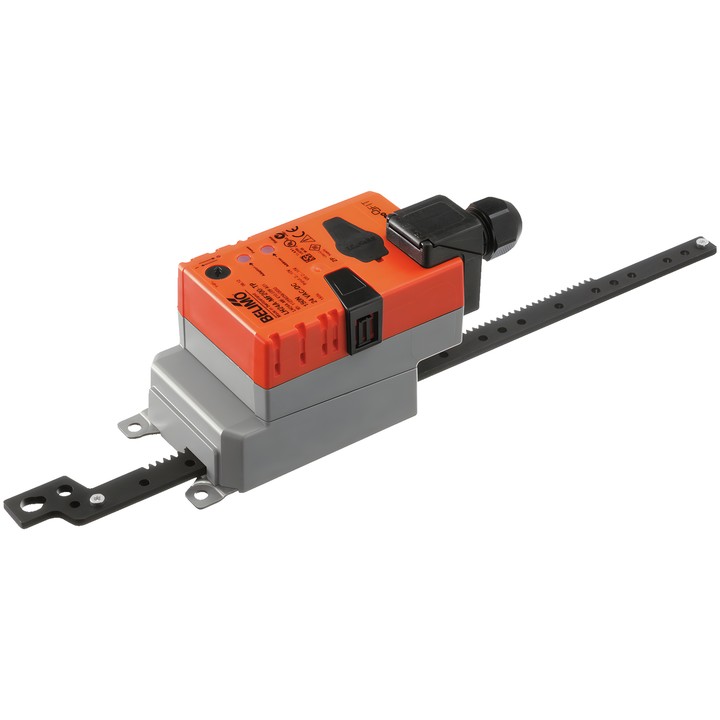

Belimo LH24A-MP200-TP - 150 N linear actuator

Belimo LH24A-MP200-TP - 150 N linear actuator

Belimo
zł726.86
VAT included
zł590.94 tax excluded

Communication-capable linear actuator for controlling dampers and slide gates in building services installations. Force 150 N, AC/DC 24 V supply, MP-Bus communication and 2...10 V modulating control.

Max. stroke 200 mm, adjustable in 20 mm increments; travel time 150 s / 100 mm. IP54 protection rating; terminal connection.

Delivery in approx. 14 days
Share

Belimo LH24A-MP200-TP

Linear actuator for controlling dampers and slide gates in building services installations. Supports analogue signal control and MP-Bus communication. It can process the signal from a connected sensor and transmit it via MP-Bus.

Key features

  • Actuating force: 150 N; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating, communication-capable control; operating range Y: 2...10 V and feedback signal U: 2...10 V.
  • Communication: MP-Bus.
  • Stroke: 200 mm; max. 200 mm, adjustable in 20 mm increments.
  • Motor travel time: 150 s / 100 mm; adjustable: 70...270 s / 100 mm.
  • Power consumption during operation: 2.5 W; at rest: 1.2 W; for cable sizing: 5 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
  • Direction of travel selected by switch; manual adjustment by push-button with option to lock.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LH24A-MP200-TP
  • EAN13
    7630498120923

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.2 W
  • Rated power
    5 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    200 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    70...270 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.63MB)

Instrukcja montażu

Download (343.87KB)

Techniczna karta katalogowa – LH24A-MP200-TP

Download (1.63MB)

EU Declaration of Conformity – LH24A-MP200-TP

Download (32.85KB)

Environmental Declaration – LH..200..

Download (71.96KB)
