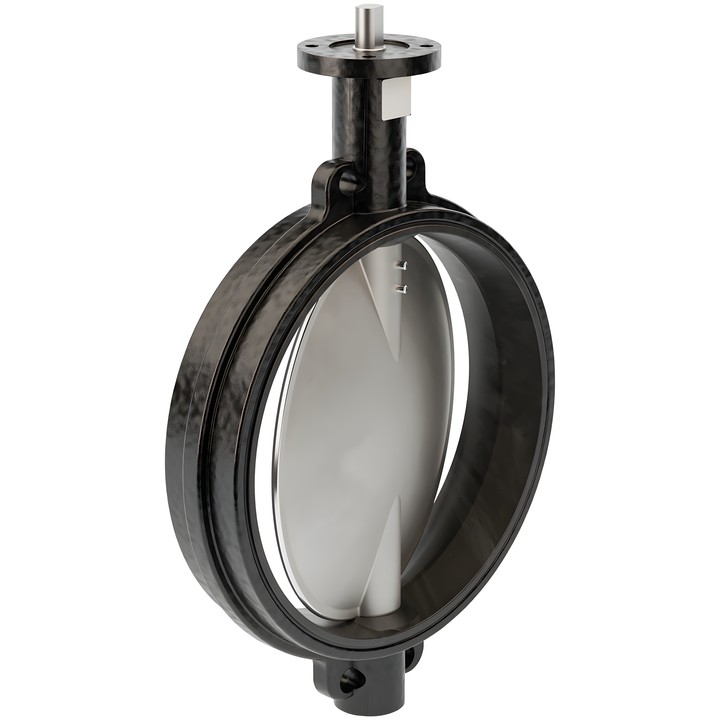

Belimo D6400N - 2-way butterfly valve DN 400

Name: Belimo D6400N - 2-way butterfly valve DN 400
Brand: Belimo
SKU: D6400N
Price: 9857.66 PLN
Availability: BackOrder

Belimo

zł9,857.66

VAT included

zł8,014.36 tax excluded

Belimo D6400N 2-way butterfly valve with wafer-type design and unthreaded holes in the body. DN 400, PN 16, Kvs 4140 m³/h and Kvmax 14200 m³/h.

For water and water with up to 50% by volume glycol; medium temperature -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D6400N butterfly valve

2-way butterfly valve DN 400 for open and closed water systems, including switching heat sources or chillers on and off. It has a wafer-type design with unthreaded holes in the body.

Key technical data

Pipe connection: flange; PN 16.
Kvs: 4140 m³/h; Kvmax: 14200 m³/h.
Medium: water, water with up to 50% by volume glycol.
Medium temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax: 300 kPa.
Flow characteristic: 0...60% opening angle — equal percentage; 0...100% opening angle — S-shaped.
Leakage rate: Class A (EN 12266-1).
Rotation angle: 90°.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: stainless steel AISI 304 (1.4301); stem: stainless steel AISI 630 (1.4542); seat: EPDM.

Installation is permitted with the stem positioned from vertical to horizontal. Do not install the valve with the stem pointing downwards. Maximum differential pressure and shut-off pressure depend on the nominal diameter and the type of actuator installed.
