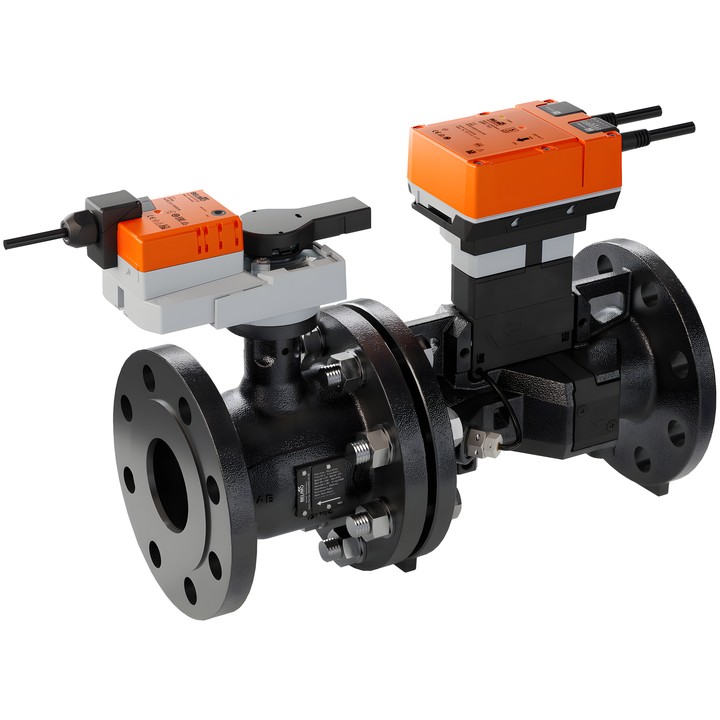

Belimo EP065F2-25+BAC - 2-way EPIV control valve

Name: Belimo EP065F2-25+BAC - 2-way EPIV control valve
Brand: Belimo
SKU: EP065F2-25+BAC
Price: 27175.62 PLN
Availability: OutOfStock

Belimo

zł27,175.62

VAT included

zł22,094.00 tax excluded

2-way EPIV control valve with sensor-based pressure-independent flow control. DN 65, PN 25, flanged connection, V'nom 8.3 l/s (30 m³/h). Intended for closed water systems.

AC/DC 24 V power supply; 2...10 V analogue control and BACnet MS/TP, Modbus RTU and MP-Bus communication. Monitors glycol concentration and medium temperature.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EP065F2-25+BAC – EPIV control valve

2-way control valve with a flow sensor and pressure-independent flow control. Intended for closed water systems and modulating water-side control in ventilation and heating systems.

Key features and specifications

DN 65, PN 25; flanged connection.
Nominal flow V'nom 8.3 l/s (30 m³/h); V'max setting range 25...100% V'nom.
Medium: water or water with a maximum of 60% vol. glycol; medium temperature -10...120°C [14...248°F].
Differential pressure ∆pmax 350 kPa; closing pressure ∆ps 690 kPa.
Ultrasonic flow measurement, medium temperature measurement and glycol concentration monitoring over a range of 0...60%.
AC/DC 24 V power supply; power consumption during operation 3.3 W, at rest 2.4 W; wire sizing power 6.2 VA.
Modulating control 2...10 V; BACnet MS/TP, Modbus RTU and MP-Bus communication; hybrid mode available.
Configuration via NFC using Belimo Assistant 2; manual adjustment by push-button, with the option to lock it.
1 m connection cable; IEC/EN IP54 degree of protection; IEC/EN protection class III, Protective Extra-Low Voltage (PELV).

For medium temperatures of -10...2°C, a valve neck extension is recommended. The permissible medium temperature may depend on the actuator type.

Brand

Belimo
Reference

EP065F2-25+BAC
EAN13

7630498136795

Medium

Water, water with max. 60% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
Differential pressure

∆pmax 350 kPa
Closing pressure

690 kPa
Differential pressure note

200 kPa for quiet operation
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

Flange
V'nom [l/s]

8.3
Adjustable flow rate

25...100% V'nom
