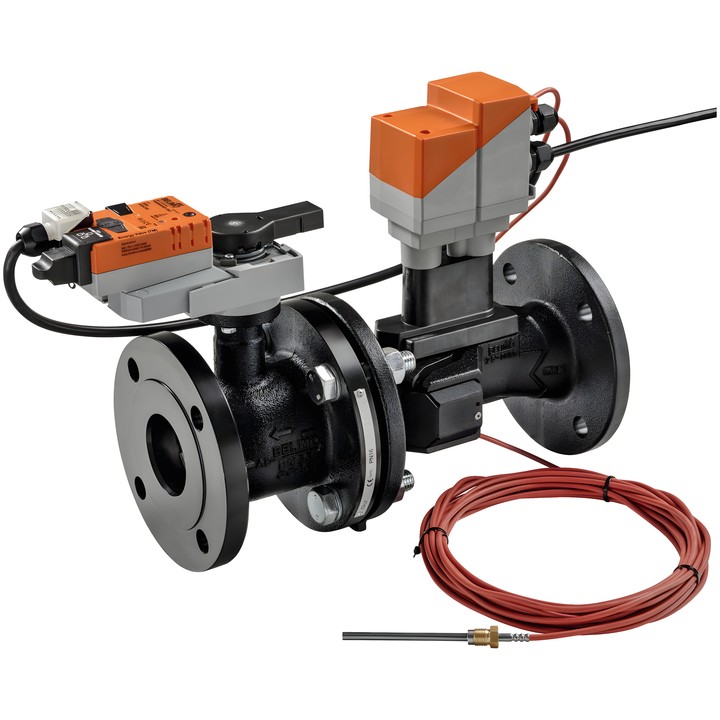

Belimo EV080F+KBAC - 2-way Energy Valve control valve

Name: Belimo EV080F+KBAC - 2-way Energy Valve control valve
Brand: Belimo
SKU: EV080F+KBAC
Price: 22177.86 PLN
Availability: BackOrder

Belimo

zł22,177.86

VAT included

zł18,030.78 tax excluded

Belimo EV080F+KBAC is a pressure-independent, 2-way Energy Valve control valve with a safety function. The DN 80, PN 16 model has a flanged connection and V'nom 11 l/s (39.6 m³/h).

It enables flow or power control based on sensor measurements, and monitors power, energy and glycol concentration. It supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days

Belimo EV080F+KBAC – Energy Valve DN 80

2-way control valve with a flanged connection, flow measurement and temperature sensors. Designed for closed water systems and water-side control in ventilation and heating systems. Control can be by an analogue signal or via communication.

Key features and parameters

DN 80, PN 16; V'nom 11 l/s (39.6 m³/h); V'max adjustable within 30...100% V'nom.
Flow or power control based on sensor measurements; ultrasonic flow measurement and power and energy monitoring.
Glycol concentration monitoring, integrated delta T manager and data logging for 13 months.
Safety function with position setting 0...100%; safety mode repositioning time 35 s / 90°.
Power supply AC/DC 24 V; power consumption during operation 15.5 W, in standby position 6.5 W.
Control signal Y 2...10 V; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud.
Medium: water or water with max. 50% vol. glycol; medium temperature -10...120°C [14...248°F].
∆pmax 340 kPa; closing pressure 690 kPa; equal-percentage flow characteristic.
Manual repositioning by push button; flanged connection; 1 m connection cable; degree of protection IEC/EN IP40.
