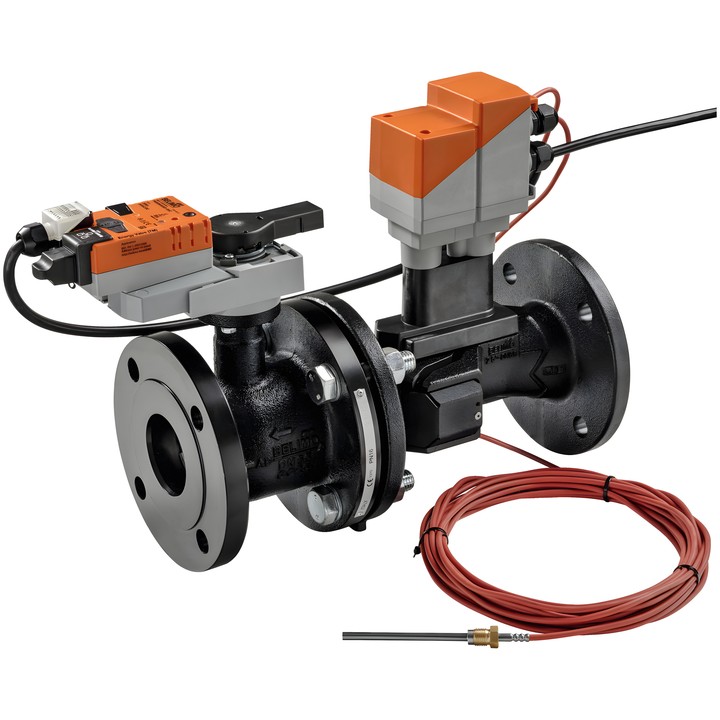

Belimo EV065F+KBAC - 2-way Energy Valve control valve DN 65

Name: Belimo EV065F+KBAC - 2-way Energy Valve control valve DN 65
Brand: Belimo
SKU: EV065F+KBAC
Price: 19852.06 PLN
Availability: BackOrder

Belimo

zł19,852.06

VAT included

zł16,139.89 tax excluded

Belimo EV065F+KBAC is a pressure-independent, 2-way flanged Energy Valve control valve, DN 65, PN 16, with a safety function. It enables flow or power control based on sensor measurements and monitors power, energy and glycol concentration.

The nominal flow rate V'nom is 8 l/s, and the V'max setting covers 30...100% V'nom. Power supply AC/DC 24 V; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days

Belimo EV065F+KBAC – Energy Valve

A pressure-independent, 2-way flanged control valve with a safety function, designed for closed water systems. It enables flow or power control on the water side of ventilation and heating systems.

Main features and specifications

DN 65, PN 16; pipe connection: flange.
V'nom 8 l/s (28.8 m³/h); V'max adjustable within 30...100% V'nom.
Medium: water or water with max. 50% vol. glycol; medium temperature -10...120°C [14...248°F].
Differential pressure ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Power supply AC/DC 24 V; power consumption during operation 15.5 W, in standby position 6.5 W; sizing power for cable selection 26 VA.
Control signal Y 2...10 V; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.
Ultrasonic flow measurement; monitoring of power, energy and glycol concentration, plus an integrated Delta-T manager.
Integrated data logging for 13 months; configuration via the integrated web server or ZTH EU.
Safety function with adjustable position 0...100%; safety-mode travel time 35 s / 90°.
Manual adjustment by button; IEC/EN IP40 protection rating.
