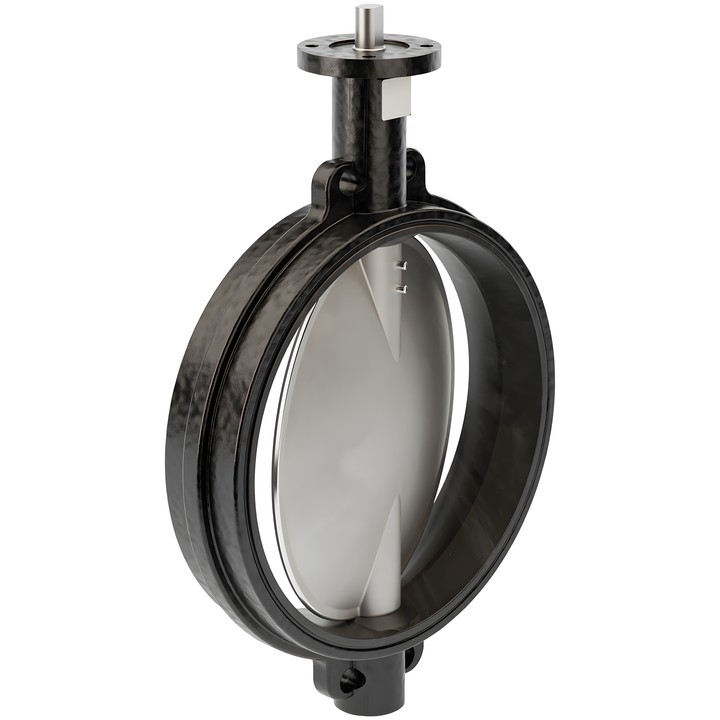

Belimo D6700N - 2-way butterfly valve DN 700

Name: Belimo D6700N - 2-way butterfly valve DN 700
Brand: Belimo
SKU: D6700N
Price: 70526.56 PLN
Availability: BackOrder

Belimo

zł70,526.56

VAT included

zł57,338.67 tax excluded

Belimo D6700N butterfly valve for open and closed water systems. DN 700, PN 16, Kvs 11760 m³/h and Kvmax 42800 m³/h.

Suitable for water and water containing up to max. 50% vol. glycol. Fluid temperature: -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D6700N – butterfly valve DN 700

2-way wafer-type butterfly valve for open and closed water systems, including switching heat sources or cooling equipment on and off.

Key technical data

DN 700; PN 16; pipe connection: flange.
Kvs 11760 m³/h; Kvmax 42800 m³/h.
Maximum differential pressure ∆pmax for DN 700: 200 kPa.
Fluid: water, water containing up to max. 50% vol. glycol.
Fluid temperature: -20...120°C [-4...248°F].
Flow characteristic: 0...60% opening angle – equal percentage; 0...100% opening angle – S-shaped. Rotation angle: 90°.
Leakage rate: A (EN 12266-1).
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: Stainless steel AISI 304 (1.4301); seat: EPDM.

Permitted installation from vertical to horizontal relative to the stem; do not install with the stem pointing downwards. The documentation lists the ZD6N-S700 worm gear as an accessory for DN 700.
