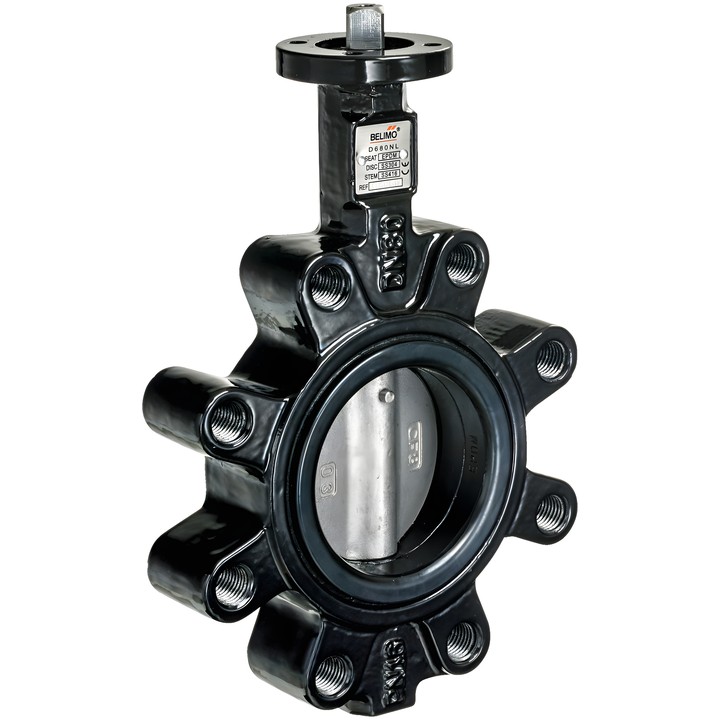

Belimo D680NL - 2-way butterfly valve DN 80

Name: Belimo D680NL - 2-way butterfly valve DN 80
Brand: Belimo
SKU: D680NL
Price: 851.82 PLN
Availability: BackOrder

Belimo

zł851.82

VAT included

zł692.54 tax excluded

Belimo D680NL is a 2-way butterfly valve with threaded holes in the body, DN 80, PN 10 / 16. Flow parameters: Kvs 75 m³/h and Kvmax 260 m³/h.

Designed for water and water with up to 50% vol. glycol; medium temperature is -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D680NL butterfly valve

2-way butterfly valve with threaded holes in the body, designed for open and closed water systems. According to the documentation, it can be used to switch heat sources or cooling equipment on and off.

Key technical data

Nominal diameter: DN 80; nominal pressure: PN 10 / 16; ps 1600 kPa.
Kvs 75 m³/h; Kvmax 260 m³/h.
Medium: water, water with up to 50% vol. glycol; medium temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax for DN 80: 300 kPa.
Flow characteristic: 0...60% opening angle — equal percentage; 0...100% opening angle — S-shaped.
Leakage rate: class A (EN 12266-1); rotation angle: 90°.
Pipe connection: flange, according to ISO 7005-2 and EN 1092-2.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: stainless steel AISI 304 (1.4301); seat: EPDM.

Permitted mounting position: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted.
