Belimo D7200WL/BAC - DN 200 3-way butterfly valve with actuators

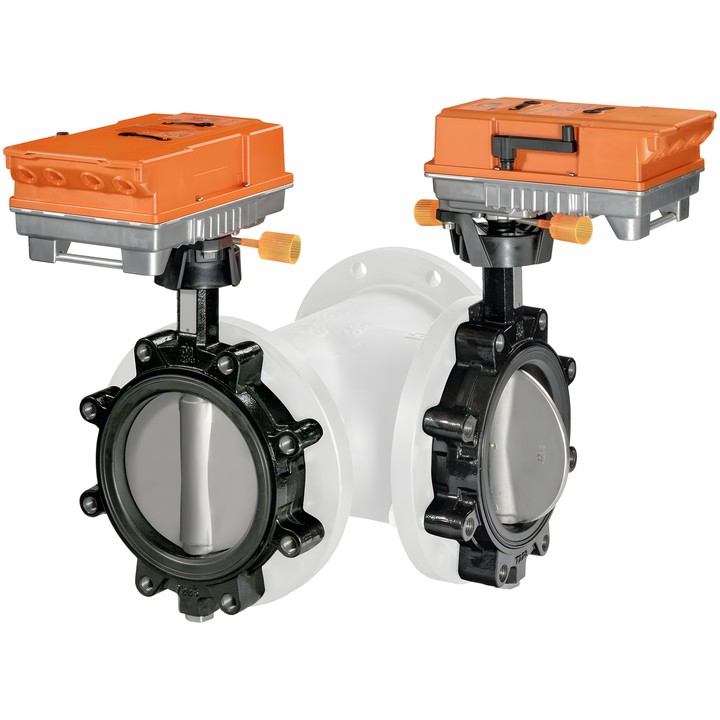

Belimo D7200WL/BAC – 3-way butterfly valve set

The set comprises two butterfly valves and two actuators, supplied separately for installation on a tee. The tee is not included; for DN 200, accessory ZD7200 is specified in the documentation. The product is intended for mixing, diverting flow, and switching and control on the water side. The actuator configuration depends on the application; for 3-way operation, the control signal of one actuator must be reversed.

Key technical data

• 3-way arrangement, DN 200, flanged connection, body with threaded holes, PN 16.
• Kvs 800 m³/h for control; Kvmax 1800 m³/h for switching.
• Medium: water or water with max. 50% vol. glycol; medium temperature -20...120°C [-4...248°F].
• Maximum differential pressure ∆pmax 300 kPa; closing pressure 1200 kPa.
• Actuator torque 160 Nm; rated voltage AC 24...240 V / DC 24...125 V; running time 35 s / 90°.
• Communication control: BACnet MS/TP, Modbus RTU, MP-Bus; conventional control is also available.
• Flow characteristic: 0...100% S-shaped or linear; 0...60% equal-percentage. Configuration is possible using Belimo Assistant 2.
• Leakage rate A (EN 12266-1); degree of protection IP66/67; manual operation by hand crank.

Permitted valve mounting position: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted.
