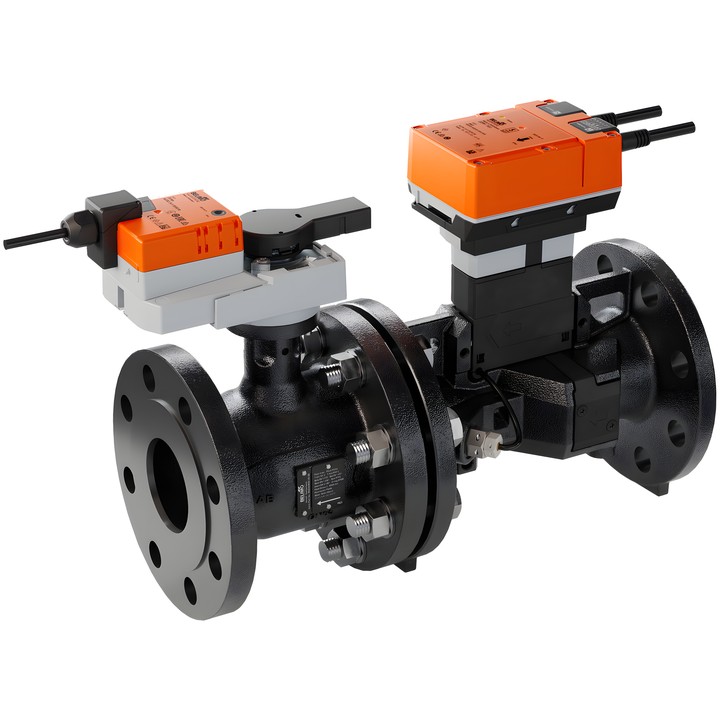

Belimo EP125F2-16+BAC - 2-way EPIV control valve DN 125

Name: Belimo EP125F2-16+BAC - 2-way EPIV control valve DN 125
Brand: Belimo
SKU: EP125F2-16+BAC
Price: 46182.81 PLN
Availability: OutOfStock

Belimo

zł46,182.81

VAT included

zł37,547.00 tax excluded

2-way EPIV control valve with sensor-based, pressure-independent flow control. DN 125, PN 16, flange connection; V'nom 33.3 l/s (120 m³/h).

AC/DC 24 V supply, modulating control and BACnet MS/TP, Modbus RTU and MP-Bus communication. The valve enables glycol concentration monitoring.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EP125F2-16+BAC – EPIV control valve

2-way control valve with sensor-based, pressure-independent flow control. Designed for closed-loop water systems and modulating control of air-handling and heating systems on the water side.

Key features

DN 125, PN 16; flange connection.
Nominal flow V'nom 33.3 l/s (120 m³/h); V'max setting range 25...100% of V'nom.
AC/DC 24 V supply; power consumption during operation 5.1 W, in standby position 2.6 W.
Modulating, communicative or hybrid control; operating range Y 2...10 V.
BACnet MS/TP, Modbus RTU and MP-Bus communication.
Measurement of fluid flow and temperature, and glycol concentration monitoring.
Fluid: water or water with a maximum of 60% vol. glycol; fluid temperature -10...120°C [14...248°F].
Differential pressure ∆pmax 350 kPa; closing pressure ∆ps 690 kPa.
NFC interface for configuration using Belimo Assistant 2; manual override by push-button, with the option to lock it.
Electrical connection: 1 m cable; IEC/EN IP54 protection rating.

For fluid temperatures of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may depend on the actuator type.

Brand

Belimo
Reference

EP125F2-16+BAC
EAN13

7630498136894

Medium

Water, water with max. 60% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
Differential pressure

∆pmax 350 kPa
Closing pressure

690 kPa
Differential pressure note

200 kPa for quiet operation
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

Flange
V'nom [l/s]

33.3
Adjustable flow rate

25...100% V'nom
