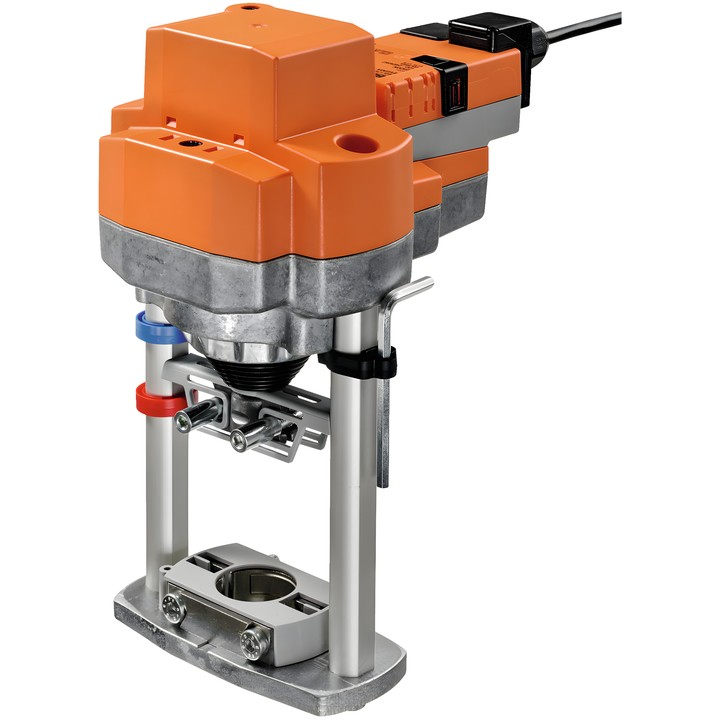

Belimo EV230A-TPC - linear actuator for globe valves

Belimo EV230A-TPC

Linear actuator for 2- and 3-way globe valves. Equipped with manual override by push-button, which can be locked, and mechanical position indication.

Key specifications

• Actuator force: 2500 N; stroke: 40 mm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Close/Open, 3-point.
• Running time: 150 s / 40 mm.
• Power consumption during operation: 5.5 W; at rest: 1 W; for cable sizing: 9.5 VA.
• Power and control connection: terminals with 1 m cable, 3x 0.75 mm², 4 mm² terminal.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
• Manual override by push-button, which can be locked.
