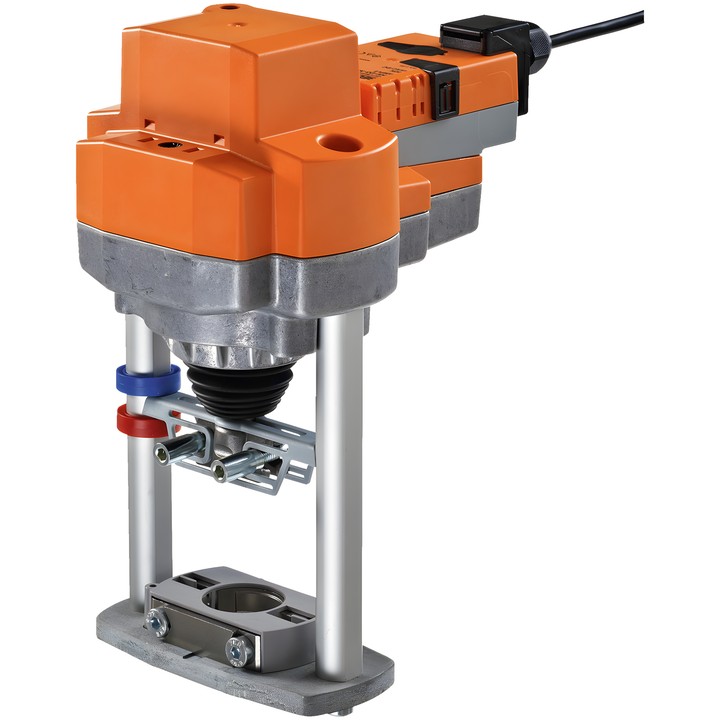

Belimo EV24A-MOD - actuator for globe valves

Name: Belimo EV24A-MOD - actuator for globe valves
Brand: Belimo
SKU: EV24A-MOD
Price: 5940.90 PLN
Availability: OutOfStock

zł5,940.90

VAT included

zł4,830.00 tax excluded

Communicating actuator for 2-way and 3-way globe valves. Force 2500 N, AC/DC 24 V supply, 40 mm stroke and 150 s / 40 mm running time.

Supports BACnet MS/TP, Modbus RTU and MP-Bus, as well as analogue control. IP54 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EV24A-MOD

Actuator for 2-way and 3-way globe valves, with modulating, communicating and hybrid control.

Actuator force: 2500 N; stroke: 40 mm.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Communication: BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus.
Control signal Y range: 2...10 V; variable range: 0.5...10 V. Position feedback signal U: 2...10 V.
Running time: 150 s / 40 mm; adjustable running time: 90...150 s.
Power consumption during operation: 4 W; at rest: 1.5 W; for cable sizing: 6 VA.
Power and control connection: 1 m cable, 6x 0.75 mm².
Manual adjustment by push-button with locking option; adaptation of the setting range.
Connection for a passive, active or changeover-contact sensor, with the option to transmit its signal to the bus.
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

AC/DC voltage

AC/DC 24 V
Power consumption (running)

4 W
Power consumption (holding)

1.5 W
Rated power

6 VA
Power supply control connection

Cable 1 m, 6x 0.75 mm²
Control type

BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Hybrid (communicating/analogue)
Protection rating

IP54
NEMA protection rating

NEMA 2
Enclosure type

UL Enclosure Type 2
