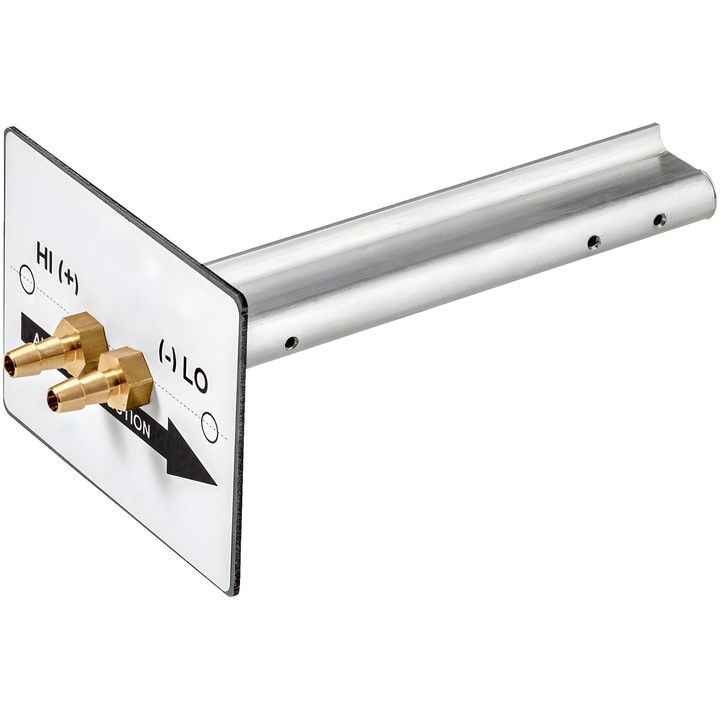

Belimo EXT-AC-L400 - volumetric airflow measurement probe

Name: Belimo EXT-AC-L400 - volumetric airflow measurement probe
Brand: Belimo
SKU: EXT-AC-L400
Price: 694.95 PLN
Availability: OutOfStock

Belimo

zł694.95

VAT included

zł565.00 tax excluded

Probe for measuring volumetric airflow in rectangular ducts. Probe length: 400 mm. Used in conjunction with a 22ADP-... differential pressure sensor.

Air velocity range for measurement: 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-L400

Probe for measuring volumetric airflow in rectangular ducts, designed for use with a 22ADP-... differential pressure sensor.

Key features

Probe length: 400 mm.
Measurement at air velocities from 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Dimension B: 25 mm.
Weight: 0.21 kg.

Installation and commissioning notes

In rectangular ducts with a height greater than 300 mm, use several probes. During commissioning, the 22ADP-.. differential pressure sensor settings must be adjusted: change the fan manufacturer to AirConcepts, change the k-factor, and adjust the lower and upper volumetric flow values. The probe's k-factor is specified in the installation instructions.
