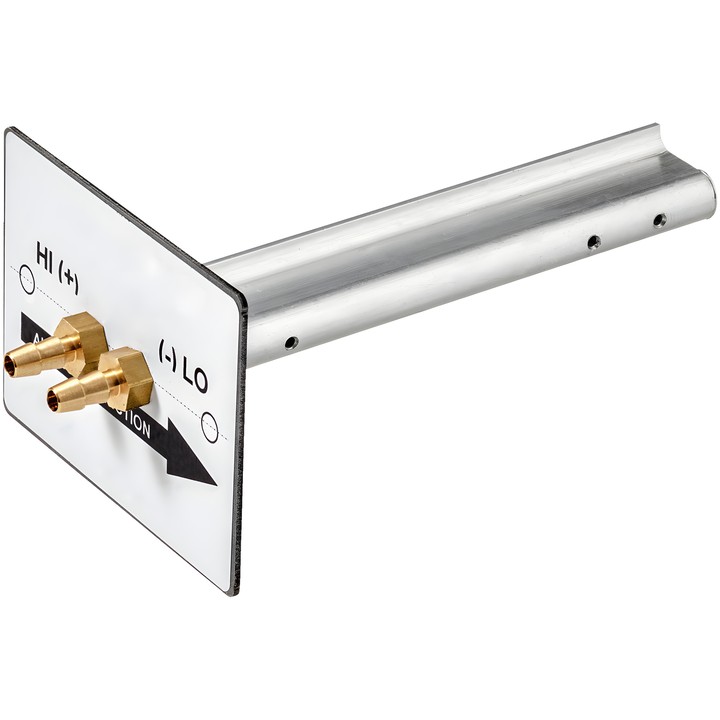

Belimo EXT-AC-L500 - air volume flow measuring probe

Name: Belimo EXT-AC-L500 - air volume flow measuring probe
Brand: Belimo
SKU: EXT-AC-L500
Price: 769.98 PLN
Availability: OutOfStock

Belimo

zł769.98

VAT included

zł626.00 tax excluded

Probe for measuring air volume flow in a rectangular duct. Probe length: 500 mm. Operates in combination with a differential pressure sensor 22ADP-..; measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-L500

Probe for measuring air volume flow, designed for rectangular ducts. It is used for measurement in combination with a differential pressure sensor 22ADP-..

Key features

Probe length: 500 mm.
Air velocity at which measurements are possible: from 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Dimension B: 25 mm.
Weight: 0.25 kg.

Installation and commissioning notes

In rectangular ducts with a height greater than 300 mm, several probes must be used. During commissioning, the following settings are required for the differential pressure sensor 22ADP-..: change the fan manufacturer to AirConcepts, change the k-factor according to the probe installation instructions, and set the lower and upper air volume flow values. Commissioning is carried out using the Belimo Duct Sensor Assistant App or via bus communication.
