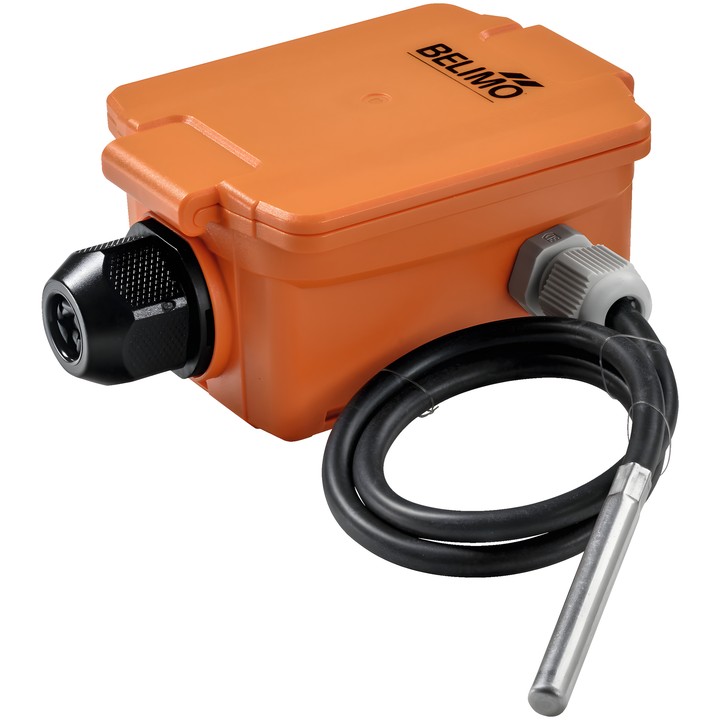

Belimo 22CT-12H - cable temperature sensor

Belimo 22CT-12H - cable temperature sensor

Belimo
zł302.10
VAT included
zł245.61 tax excluded

Active temperature sensor with cable for measuring temperature in pipe and air applications. AC/DC 24 V supply; the 0...5 V or 0...10 V output signal is adjustable via a jumper.

Cable length is 2 m, probe length is 50 mm and probe diameter is 6 mm. Enclosure protection rating: IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22CT-12H – cable temperature sensor

Active sensor for measuring temperature in pipe and air applications. Fitted with a stainless steel probe and a 2 m cable.

Key features

  • Measured value: temperature; measuring element based on Pt1000 class AA.
  • Nominal voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 5 kΩ; 0...5/10 V signal adjustable via a jumper.
  • 8 selectable measuring ranges.
  • Probe length: 50 mm; probe diameter: 6 mm; cable length: 2 m.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.

Temperature ranges selectable via jumper setting: S0 -50...50°C, S1 -10...120°C, S2 0...50°C, S3 0...250°C, S4 -15...35°C, S5 0...100°C, S6 -20...80°C and S7 0...160°C. The maximum measuring range does not indicate the permissible medium temperature; the specified medium temperature range is -50...180°C.

  • Brand
    Belimo
  • Reference
    22CT-12H
  • EAN13
    7630498101007

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    0...5 V 0...10 V
  • Probe length
    50 mm
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 5 kΩ

Techniczna karta katalogowa

Download (2.13MB)

Instrukcja montażu

Download (1004.6KB)

Techniczna karta katalogowa – 22CT-12H

Download (2.13MB)

EU Declaration of Conformity – 22CT-12H

Download (327.03KB)

Environmental Declaration – 22CT..

Download (72KB)
