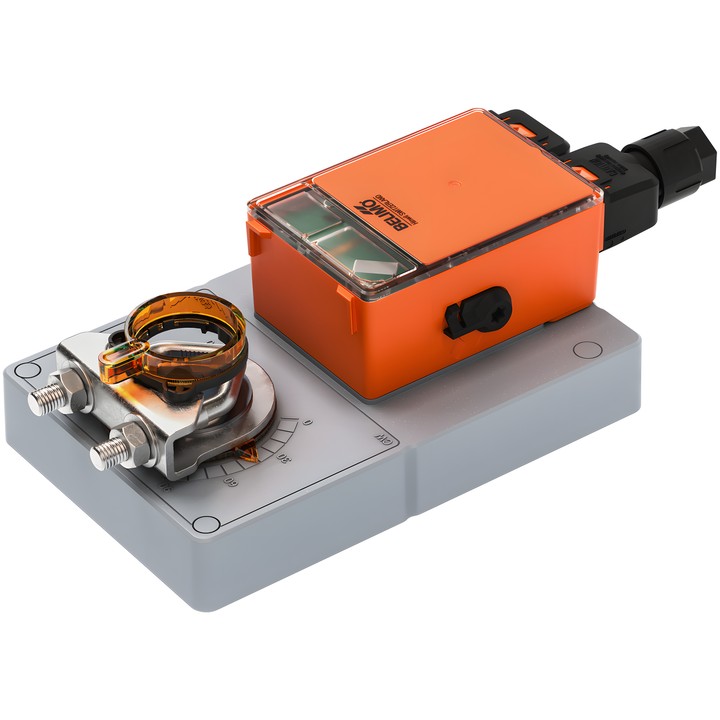

Belimo GM24.2D - damper actuator

Belimo GM24.2D - damper actuator

Belimo
zł1,358.47
VAT included
zł1,104.45 tax excluded

Belimo GM24.2D damper actuator without safety function, powered by AC/DC 24 V. Torque 40 Nm, Close/Open control and running time 35 s / 90°.

Equipped with a reversible universal mounting clamp for 12...26.7 mm shafts, terminal connection and an NFC interface for configuration using Belimo Assistant 2.

Delivery in approx. 14 days
Share

Belimo GM24.2D damper actuator

Actuator designed to adjust dampers in technical building systems. Model without a safety function, with Close/Open control.

Key features and specifications

  • Torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Motor running time: 35 s / 90°; adjustable motor running time: 35...150 s.
  • Angle of rotation: max. 95°; electronic limitation at both ends is possible using Belimo Assistant 2.
  • Motor direction: clockwise (cw); direction can be selected using Belimo Assistant 2.
  • Power consumption in motion: 4 W; at rest: 0.3 W; for wire sizing: 8 VA.
  • Reversible universal mounting clamp for 12...26.7 mm shafts.
  • Manual adjustment using a side lever with locking option; mechanical position indicator and green status LED.
  • Disconnectable spring terminals; NFC interface for configuration and service using Belimo Assistant 2.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Protective Extra-Low Voltage (PELV).
  • Ambient temperature: -30...55°C [-22...131°F].

  • Brand
    Belimo
  • Reference
    GM24.2D
  • EAN13
    7630498124051

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4 W
  • Power consumption (holding)
    0.3 W
  • Rated power
    8 VA
  • Power supply control connection
    Terminals 2.5 mm² [14 AWG] (cable ø4...7,5 mm [ø0.16...0.29"], 3-core)
  • Control type
    Close/Open
  • Protection rating
    IP54
  • Manual override
    With side lever, lockable
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa

Download (3.18MB)

Instrukcja montażu

Download (1.55MB)

Techniczna karta katalogowa – GM24.2D

Download (3.2MB)

EU Declaration of Conformity – GM24.2D

Download (56.12KB)
