Belimo SM24AP5 - damper actuator

Belimo SM24AP5 - damper actuator

Belimo
zł978.50
VAT included
zł795.53 tax excluded

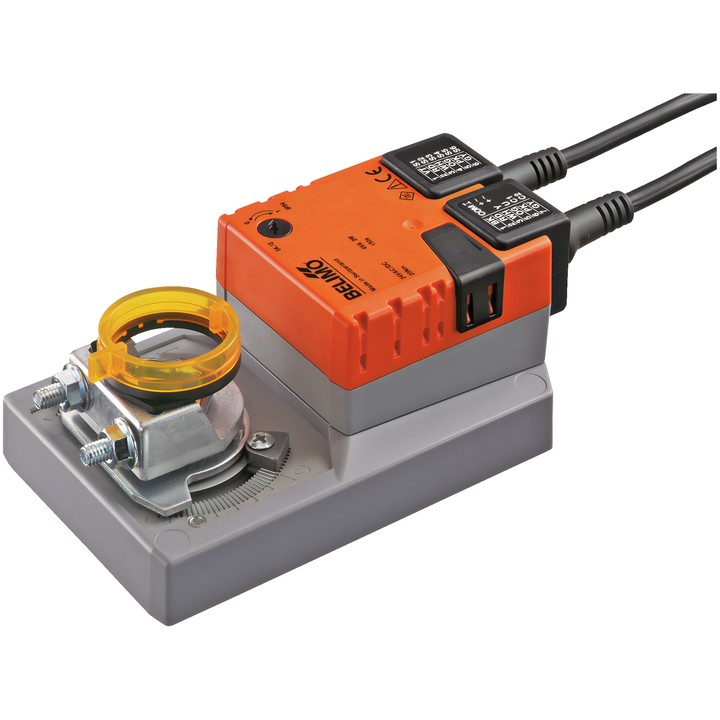

Belimo SM24AP5 damper actuator with a torque of 20 Nm, powered by AC/DC 24 V. Supports Open/Close and 3-point control; running time is 150 s / 90°.

Equipped with a 5 kΩ feedback potentiometer, manual override button with locking option, and reversible mounting clamp 10...20 mm.

Delivery in approx. 14 days
Share

Belimo SM24AP5 – damper actuator

Actuator designed to regulate air dampers in technical building systems. According to the technical data sheet, it is intended for dampers with an area of up to approx. 4 m².

Key features and specifications

  • Torque: 20 Nm; nominal voltage: AC/DC 24 V; nominal voltage frequency: 50/60 Hz.
  • Control: Open/Close, 3-point; motor running time: 150 s / 90°.
  • Feedback potentiometer: 5 kΩ; position signal 0...100%.
  • Power consumption during operation: 2 W; in rest position: 0.2 W; sizing power: 4 VA.
  • Direction of movement selected by switch 0 (anticlockwise rotation) / 1 (clockwise rotation).
  • Angle of rotation: max. 95°, with the option of limiting both sides using mechanical end stops.
  • Manual override by button with locking option; mechanical position indicator.
  • Mechanical connection: reversible universal mounting clamp 10...20 mm.
  • Power and control connection, and potentiometer connection: each with a 1 m cable, 3x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM24AP5
  • EAN13
    7630498114458

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
  • Potentiometer
    5 kΩ
  • Potentiometer connection
    Cable, 3x 0.75 mm²

Techniczna karta katalogowa

Download (1.56MB)

Instrukcja montażu

Download (570.1KB)

EU Declaration of Conformity – SM24AP5

Download (49.92KB)

Environmental Declaration – SM..

Download (72.46KB)
