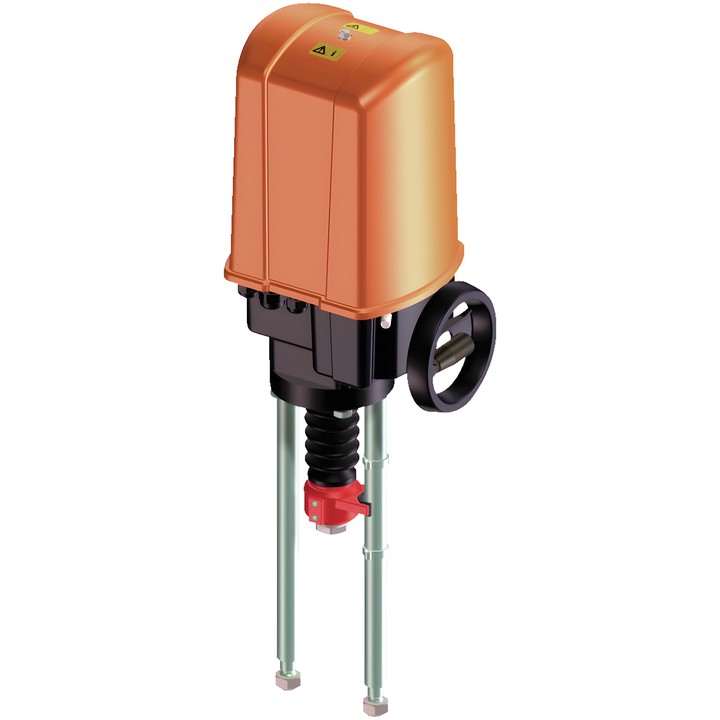

Belimo GV12-230-3-T - linear actuator for large globe valves
Price:
zł14,187.42
VAT included
zł11,534.49 tax excluded
Belimo GV12-230-3-T actuator for large 2- and 3-way globe valves DN 200/250. Actuating force 15000 N, AC 230 V supply, 3-point control and 65 mm stroke.
Running time is 82 s / 65 mm. The actuator has 2x SPDT, 1.5 mm² terminal connection and IP65 protection rating.
Belimo GV12-230-3-T
Linear actuator designed for large 2- and 3-way globe valves DN 200/250. It is controlled by a 3-point signal.
Key features and parameters
- Actuating force: 15000 N; stroke: 65 mm.
- Rated voltage: AC 230 V; frequency: 50 Hz; voltage range: AC 207...253 V.
- Power consumption for cable sizing: 90 VA.
- Running time: 82 s / 65 mm.
- Auxiliary switches: 2x SPDT.
- Power and control connection: 1.5 mm² terminals.
- Manual adjustment using the handwheel when the motor is switched off.
- Mechanical position indicator for a stroke of 30...65 mm.
- Protection rating IEC/EN: IP65; protection class IEC/EN: II, reinforced insulation.
When the end position is reached, the motor is switched off by two load-dependent switches. Manual operation requires the motor to be stopped.
-
Brand
-
ReferenceGV12-230-3-T
-
EAN137630498105425
-
AC/DC voltageAC 230 V
-
Rated power90 VA
-
Power supply control connection1.5 mm² terminals
-
Control type3-point
-
Protection ratingIP65
-
Auxiliary contacts2x SPDT
