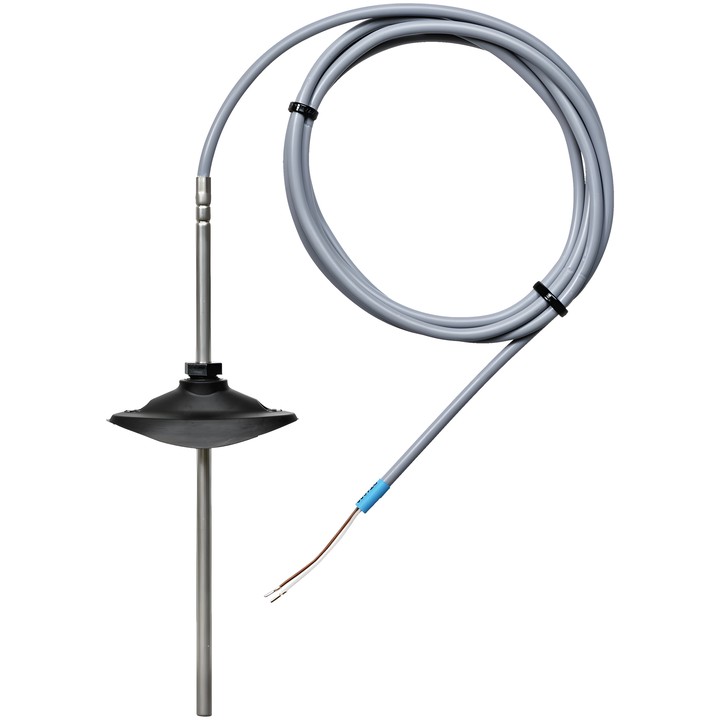

Belimo 01CT-1DPF - cable temperature sensor with mounting flange

Name: Belimo 01CT-1DPF - cable temperature sensor with mounting flange
Brand: Belimo
SKU: 01CT-1DPF
Price: 105.39 PLN
Availability: BackOrder

Belimo

zł105.39

VAT included

zł85.68 tax excluded

Passive cable temperature sensor for measuring temperature in air ducts. Model 01CT-1DPF has a Ni1000TK5000 output signal, a probe 200 mm long and 6 mm in diameter, and a 2 m, 2-wire cable.

A mounting flange for the probe is included. Degree of protection: IP67 / NEMA 4X.

Delivery in approx. 14 days

Belimo 01CT-1DPF – cable temperature sensor

Passive sensor designed to measure temperature in air ducts. It is equipped with a stainless-steel probe, a PVC cable and a mounting flange for the probe.

Key features

Output signal: Ni1000TK5000.
Probe length: 200 mm; probe diameter: 6 mm.
Electrical connection: 2 m, 2-wire cable.
Temperature measuring range: -35...100°C [-30...210°F].
Accuracy for Ni.. sensors: ±0.4°C @ 0°C [±0.7°F @ 32°F].
Measuring current for Ni1000TK5000: <0.3 mA @ 0°C [32°F].
Degree of protection: IP67 according to IEC/EN and NEMA 4X according to NEMA/UL.
Included: plastic mounting flange A-22D-A03 for a 6 mm probe, up to max. 120°C [248°F].

With passive 2-wire sensors, the supply current affects measurement accuracy due to self-heating. It should not exceed the measuring current specified in the technical data sheet.
