Belimo JRCA-BAC-S2-T rotary actuator for dampers with a torque of 90 Nm. Supply voltage AC 24...240 V / DC 24...125 V, BACnet MS/TP, Modbus RTU and MP-Bus communication, plus 2x SPDT.

Running time is 35 s / 90° and can be adjusted within 20...120 s. IEC/EN IP66/67 protection rating.

Delivery in approx. 14 days
Share

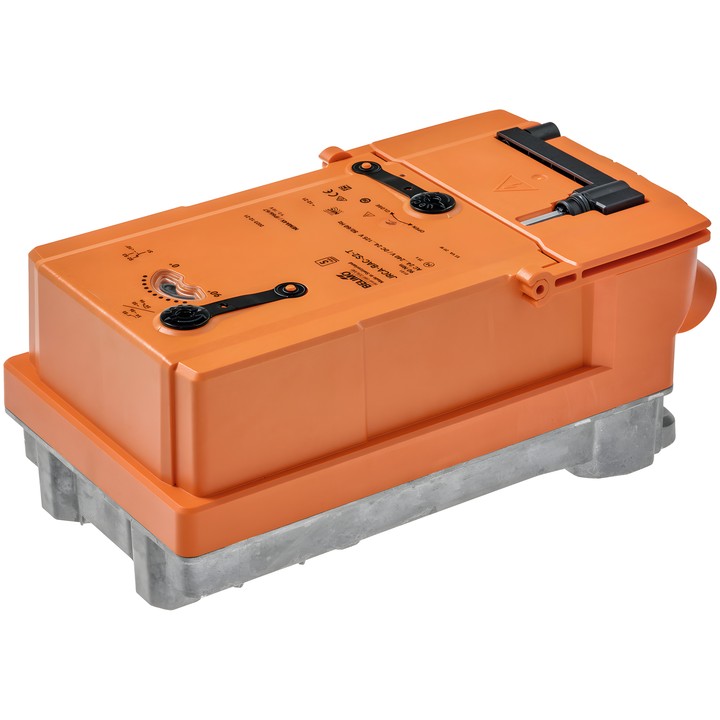

Belimo JRCA-BAC-S2-T rotary actuator

Electronic rotary actuator for dampers, designed for modulating, communicative and hybrid control. It also enables conversion of signals from connected sensors.

Key features and parameters

  • Motor torque: 90 Nm; supply voltage: AC 24...240 V / DC 24...125 V, 50/60 Hz.
  • Communication: BACnet MS/TP, Modbus RTU, MP-Bus; Y operating range: 2...10 V, configurable to 0.5...10 V or 4...20 mA.
  • Motor running time: 35 s / 90°; adjustable: 20...120 s.
  • Two integrated auxiliary switches 2x SPDT: 1x 10° / 1x 0...90° (default setting 85°).
  • Power consumption during movement: 20 W; at rest: 7 W. Sizing power for cable selection: 20 VA at 24 V / 55 VA at 240 V.
  • Power terminals: 0.5...2.5 mm²; control terminals: 0.34...1.5 mm²; copper conductors only.
  • IEC/EN IP66/67 protection rating; F07 connection flange (F05/F10 only with accessories).
  • Manual adjustment using a crank, integrated mechanical position indicator and internal heating to prevent condensation.
  • Parameter configuration using Belimo Assistant 2, including via NFC.

  • Brand
    Belimo
  • Reference
    JRCA-BAC-S2-T
  • EAN13
    7630498109706

  • AC/DC voltage
    AC 24...240 V / DC 24...125 V
  • Auxiliary switch connection
    Terminals 0.5...2.5 mm², copper conductors only
  • Power consumption (running)
    20 W
  • Power consumption (holding)
    7 W
  • Rated power
    at 24 V 20 VA / at 240 V 55 VA
  • Control type
    BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V 4...20 mA Close/Open 3-point Hybrid (communicating/analogue)
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Power connection
    Terminals 0.5...2.5 mm², copper conductors only
  • Auxiliary contacts
    2x SPDT
  • Control connection
    Terminals 0.34...1.5 mm², copper conductors only
