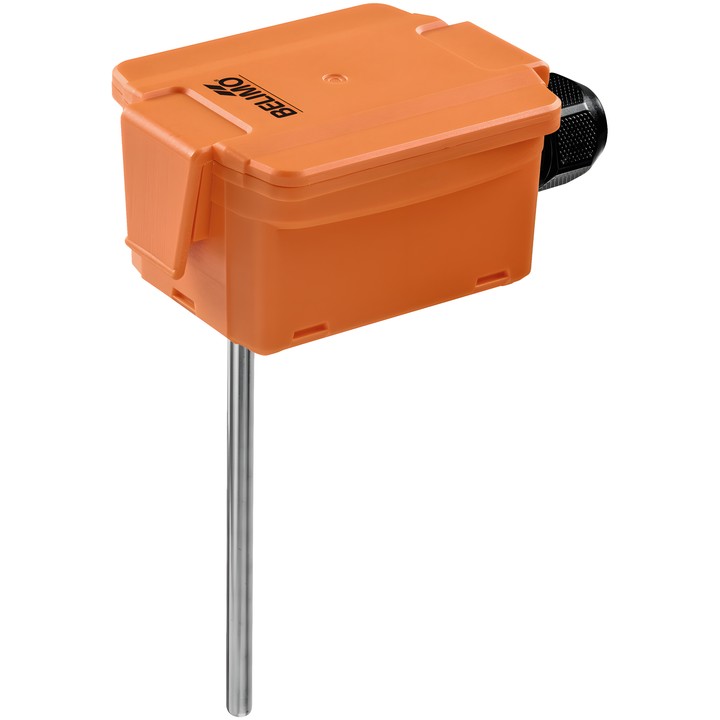

Belimo 01DT-1CT - duct/immersion temperature sensor

Belimo 01DT-1CT - duct/immersion temperature sensor

Belimo
zł159.32
VAT included
zł129.53 tax excluded

Passive temperature sensor for measurements in air ducts. Model 01DT-1CT has a Ni1000 output signal, a 450 mm long probe with a diameter of 6 mm, and an enclosure with an IP65 / NEMA 4X protection rating.

For pipe applications, it can be used with a stainless steel or brass immersion well.

Delivery in approx. 14 days
Share

Belimo 01DT-1CT – temperature sensor

Passive sensor for measuring temperature in air ducts. When used with a stainless steel or brass immersion well, it can also be used in piping systems.

Key features

  • Output signal: Ni1000.
  • Probe length: 450 mm; probe diameter: 6 mm.
  • Temperature measuring range: -50...160°C [-60...320°F].
  • Temperature measurement accuracy: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².
  • Probe material: V4A (1.4404).

The scope of delivery includes a mounting clip with screws and adhesive foil, type A-22D-A11. Immersion wells are listed in the documentation as recommended accessories.

  • Brand
    Belimo
  • Reference
    01DT-1CT
  • EAN13
    7630498100338

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Ni1000
  • Passive temperature sensor output
    Ni1000
  • Probe length
    450 mm

Techniczna karta katalogowa

Download (1.32MB)

Instrukcja montażu

Download (1.19MB)

Techniczna karta katalogowa – 01DT-1C..

Download (1.33MB)

EU Declaration of Conformity – 01DT-1CT

Download (39.66KB)

Environmental Declaration – ..DT..

Download (70.29KB)
