Belimo LH24A-MOD200 - linear actuator

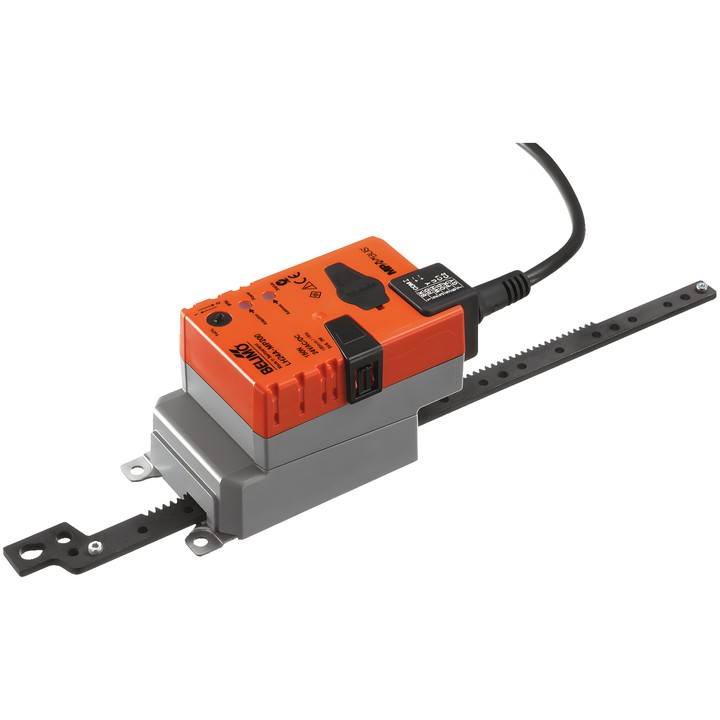

Belimo LH24A-MOD200 linear actuator

Model designed for controlling dampers and gate valves in stationary heating, ventilation and air conditioning systems. Supports modulating, communicative and hybrid control, as well as sensor signal conversion.

Key specifications

• Motor force: 35 lbf [150 N]; supply: AC/DC 24 V, 50/60 Hz.
• Communication: BACnet MS/TP, Modbus RTU (factory setting), MP-Bus.
• Operating range Y: 2...10 V; adjustable range: 0.5...10 V; feedback signal U: 2...10 V.
• Stroke: 200 mm; max. 200 mm, adjustable in 20 mm increments.
• Motor running time: 150 s / 100 mm; adjustable: 70...270 s / 100 mm.
• Power consumption during operation: 2.5 W; at rest: 1.3 W; for wire sizing: 5 VA.
• Direction of movement changed by switch; manual override by push-button with locking option.
• Power and control connection: 1 m cable, 6x 0.75 mm².
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].

The actuator has an input for connecting a passive, active or switching-contact sensor. The sensor's analogue signal can be converted and transmitted via BACnet, Modbus or MP-Bus.
