Belimo GK24G-MP communicative rotary actuator for dampers with safety function, 40 Nm torque and AC/DC 24 V power supply. Supports MP-Bus and 2...10 V control; enclosure protection rating is IP66/67.

Motor running time is 150 s / 90°, and safety function running time is 35 s / 90°.

Delivery in approx. 14 days
Share

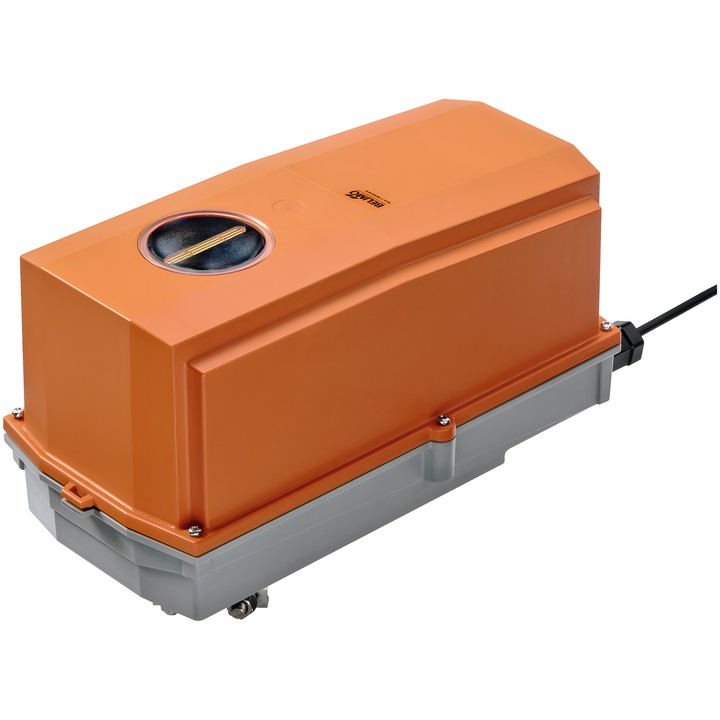

Belimo GK24G-MP – rotary actuator for dampers

Actuator for controlling dampers in technical building systems. Integrated capacitors store the energy required to move the damper to its preset safety position following a power failure. The IP66/67 enclosure is also suitable for outdoor applications.

Key features and specifications

  • Torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control 2...10 V and MP-Bus communication; position feedback signal 2...10 V.
  • Motor running time: 150 s / 90°; adjustable motor running time: 90...150 s. Safety function running time: 35 s / 90°.
  • Safety position adjustable from 0...100% in 10% increments; hold time after power failure: 2 s, adjustable from 0...10 s.
  • Maximum rotation angle: 95°; mechanical rotation angle limiters and mechanical position indicator.
  • Universal shaft clamp 14...26.7 mm; manual adjustment using the button under the protective cover.
  • Connecting cable: 1 m, 4x 0.75 mm², halogen-free; power consumption during operation: 11 W, at rest: 3 W; power for cable sizing: 21 VA.
  • IEC/EN protection rating IP66/67; NEMA 4X; ambient temperature: -30...50°C [-22...122°F].
  • Can connect a passive or active sensor, or a switching contact, and transmit its signal via MP-Bus.

Actuator adaptation is required after changing the rotation angle and during commissioning.

  • Brand
    Belimo
  • Reference
    GK24G-MP
  • EAN13
    7630498111600

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    11 W
  • Power consumption (holding)
    3 W
  • Rated power
    21 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Button (under protective cover)
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    35 s
  • Variable motor running time
    90...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 14...26.7 mm
  • Direction of rotation (safety function)
    Selectable via switch 0...100%
