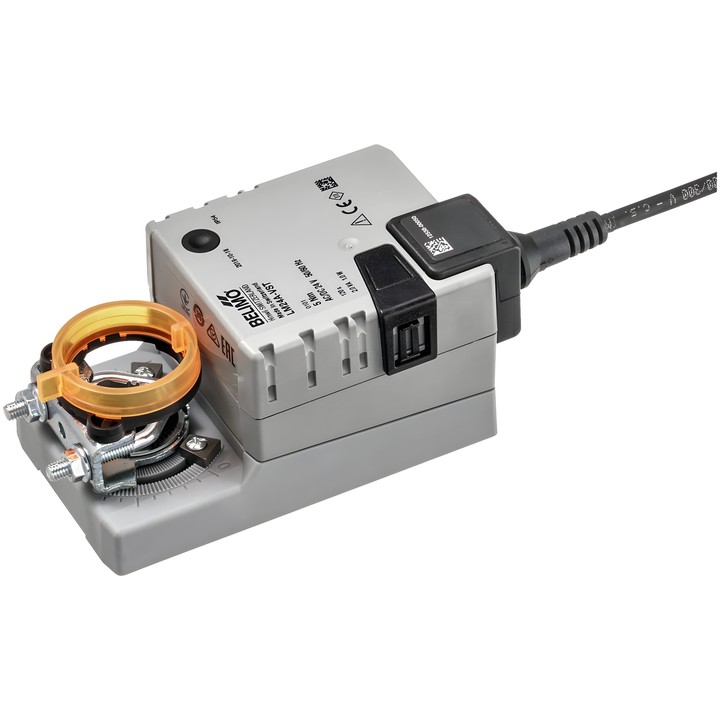

Belimo LM24A-VST - rotary actuator for VAV/CAV dampers

Name: Belimo LM24A-VST - rotary actuator for VAV/CAV dampers
Brand: Belimo
SKU: LM24A-VST
Price: 1152.51 PLN
Availability: OutOfStock

Belimo

zł1,152.51

VAT included

zł937.00 tax excluded

VAV-Universal rotary actuator for VAV and CAV units in building services installations. Torque 5 Nm, AC/DC 24 V supply and PP communication control.

Motor running time is 120 s / 90°. The actuator has a 0.5 m cable with VST connector, universal shaft clamp 6...20 mm and IP54 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LM24A-VST

Ready-to-connect VAV-Universal rotary actuator for VAV and CAV units in building services installations. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1 m².

Key features and specifications

Torque: 5 Nm; nominal supply: AC/DC 24 V, 50/60 Hz.
Control: PP communication.
Motor running time: 120 s / 90°; rotation angle: 95°.
Power consumption during operation: 1 W; in the rest position: 0.4 W; power for cable sizing: 2 VA.
Electrical connection: 0.5 m cable with VST connector; mechanical connection: universal shaft clamp 6...20 mm.
Manual adjustment by button with option to lock; mechanical rotation angle stops and mechanical position indicator.
IEC/EN protection rating IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

After system commissioning and whenever the rotation angle is changed, self-adaptation is required by pressing the adaptation button once.
