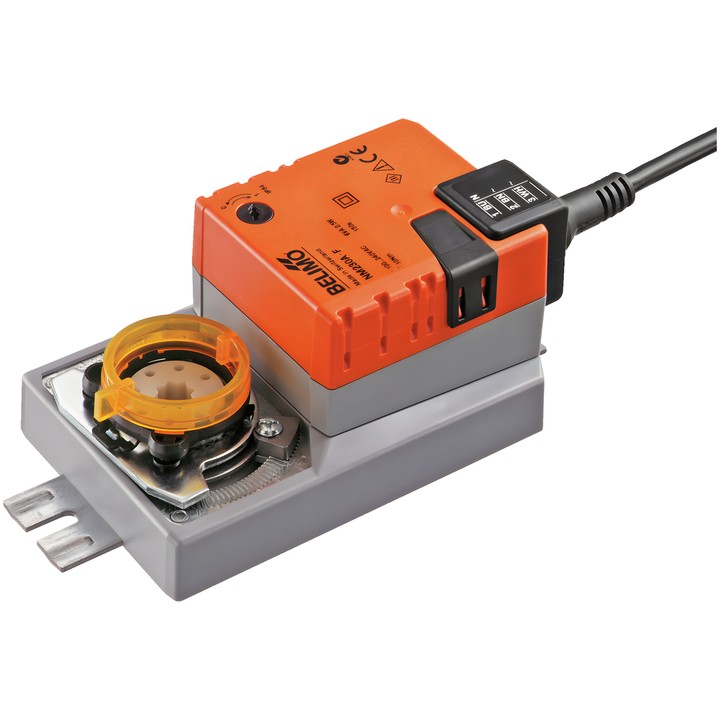

Belimo NM230A-F - 10 Nm damper actuator

Belimo NM230A-F - 10 Nm damper actuator

Belimo
zł581.86
VAT included
zł473.06 tax excluded

Belimo NM230A-F damper actuator with a torque of 10 Nm, powered by AC 100...240 V. Close/Open, 3-point control; motor running time is 150 s / 90°.

8x8 mm form-fit connection, manual override by push-button with locking option, and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo NM230A-F – damper actuator

Actuator designed to control air dampers in technical building systems. According to the technical data sheet, it is suitable for dampers with an area of up to approx. 2 m².

Key features and parameters

  • Torque: 10 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°.
  • Direction of movement selected by switch 0 (counterclockwise) / 1 (clockwise).
  • 8x8 mm form-fit connection; direct mounting on the damper shaft.
  • Manual override by push-button with locking option; rotation angle adjusted using mechanical stops on both sides.
  • Mechanical, clip-on position indicator.
  • Power consumption during operation: 2.5 W; in the idle position: 0.6 W; power for cable sizing: 5.5 VA.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NM230A-F
  • EAN13
    7630498112997

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    5.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (1.49MB)

Instrukcja montażu

Download (423.98KB)

EU Declaration of Conformity – NM230A-F

Download (32.76KB)

Environmental Declaration – NM..

Download (72.37KB)
