Belimo TMC24A-SR - modulating damper actuator

Belimo TMC24A-SR - modulating damper actuator

Belimo
zł629.53
VAT included
zł511.81 tax excluded

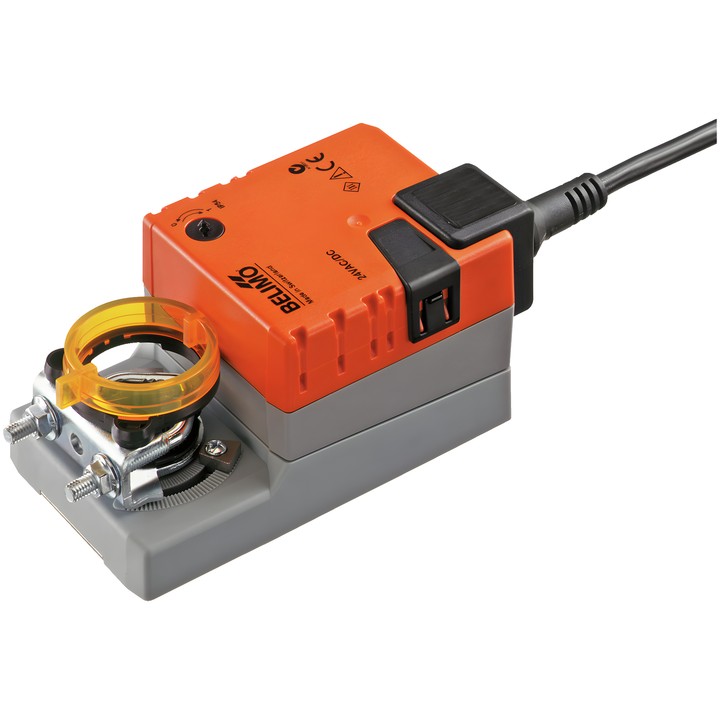

Belimo TMC24A-SR damper actuator with a torque of 2 Nm, powered by AC/DC 24 V. Modulating control 2...10 V and position feedback signal 2...10 V; running time is 35 s / 90°.

Features a universal clamp 6...20 mm, manual adjustment by push-button and adjustable mechanical rotation angle limiters.

Delivery in approx. 14 days
Share

Belimo TMC24A-SR – damper actuator

A modulating actuator designed to position dampers in building technical systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 0.4 m².

Key features and specifications

  • Torque: 2 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Control range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 35 s / 90°; maximum rotation angle: 95°.
  • Direction of movement selected by switch 0/1; rotation angle limited on both sides by adjustable mechanical stops.
  • Manual adjustment by push-button with lockout option; mechanical, removable position indicator.
  • Universal clamp 6...20 mm; power and control connection: cable 1 m, 4x 0.75 mm².
  • Power consumption during operation: 1.5 W; at rest: 0.4 W; for cable sizing: 3 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    TMC24A-SR
  • EAN13
    7630498115776

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    3 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.34MB)

Instrukcja montażu

Download (507.42KB)

EU Declaration of Conformity – TMC24A-SR

Download (32.77KB)

Environmental Declaration – TM..

Download (72.22KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
