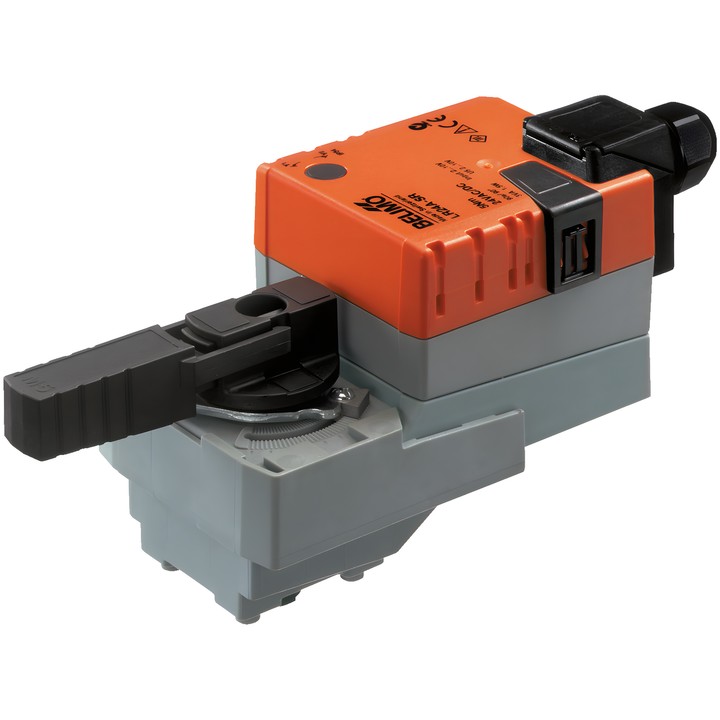

Belimo LR230A-TP - rotary actuator for ball valves

Name: Belimo LR230A-TP - rotary actuator for ball valves
Brand: Belimo
SKU: LR230A-TP
Price: 1001.22 PLN
Availability: OutOfStock

Belimo

zł1,001.22

VAT included

zł814.00 tax excluded

Belimo LR230A-TP rotary actuator for ball valves. Torque 5 Nm, AC 100...240 V supply and Close/Open, 3-point control. Motor running time is 90 s / 90°.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LR230A-TP – rotary actuator for ball valves

Actuator designed for direct mounting on a ball valve. It offers manual override using a push button that can be locked, and adjustment of the rotation angle using mechanical stops.

Key features and specifications

Motor torque: 5 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 90 s / 90°.
Power consumption during operation: 2 W; at rest: 0.5 W; sizing power: 4 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm, 3-core).
Mechanical, removable position indicator and mechanical rotation-angle stops.
Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
Manual override using a lockable push button.
