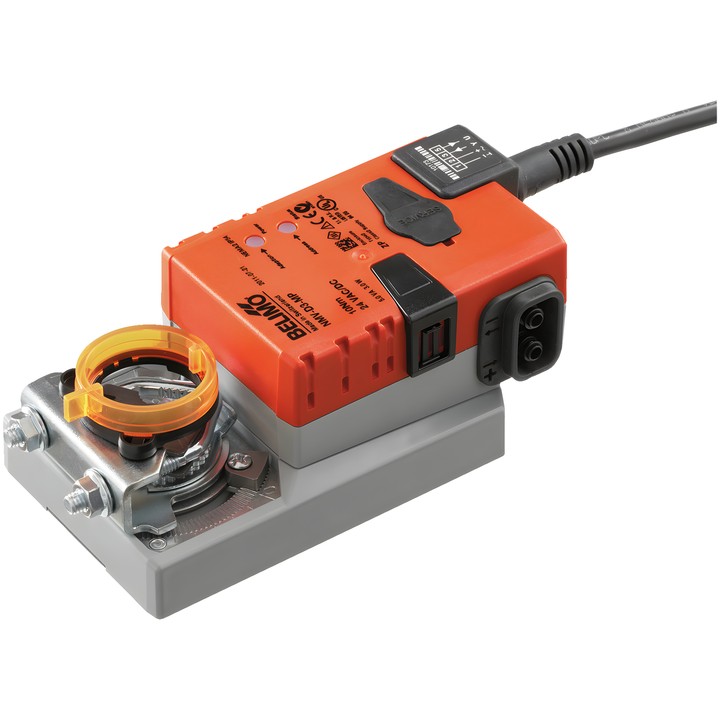

Belimo NMV-D3-MP - VAV-Compact flow controller with actuator

Name: Belimo NMV-D3-MP - VAV-Compact flow controller with actuator
Brand: Belimo
SKU: NMV-D3-MP
Price: 2013.51 PLN
Availability: OutOfStock

Belimo

zł2,013.51

VAT included

zł1,637.00 tax excluded

Belimo NMV-D3-MP is a VAV-Compact unit with a VAV controller, dynamic Δp sensor and actuator for dampers with a torque of 10 Nm. Designed for VAV terminal units in comfort applications; it supports VAV/CAV control and position control.

AC/DC 24 V power supply, MP-Bus communication and 0/2...10 V modulating control. The differential pressure measuring range is 0...500 Pa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NMV-D3-MP – VAV-Compact unit

NMV-D3-MP combines a VAV controller, a Belimo D3 dynamic differential pressure sensor and a damper actuator. It is designed for pressure-independent control of VAV terminal units in comfort applications. It supports VAV/CAV flow control and position control.

Key features and parameters

Torque: 10 Nm; rotation angle: 95°.
Power supply: AC/DC 24 V, 50/60 Hz; power consumption during movement: 3 W, in the rest position: 1.5 W.
MP-Bus communication and 0/2...10 V modulating control; operating range Y: 2...10 V, configurable: 0...10 V.
Feedback signal U: 2...10 V.
Belimo D3 dynamic differential pressure sensor; measuring range: 0...500 Pa.
Adjustable flow setpoints: V'max 20...100% of V'nom, V'min 0...100% of V'nom (<V'max).
Manual adjustment using a push button, with the option to lock it; mechanical position indicator.
Universal clamp 8...26.7 mm; cable 1 m, 4x 0.75 mm².
Service socket and NFC interface for configuration and servicing using Belimo Assistant 2.
Degree of protection IEC/EN IP54; protection class IEC/EN III, Protective Extra-Low Voltage (PELV); ambient temperature 0...50°C [32...122°F].
