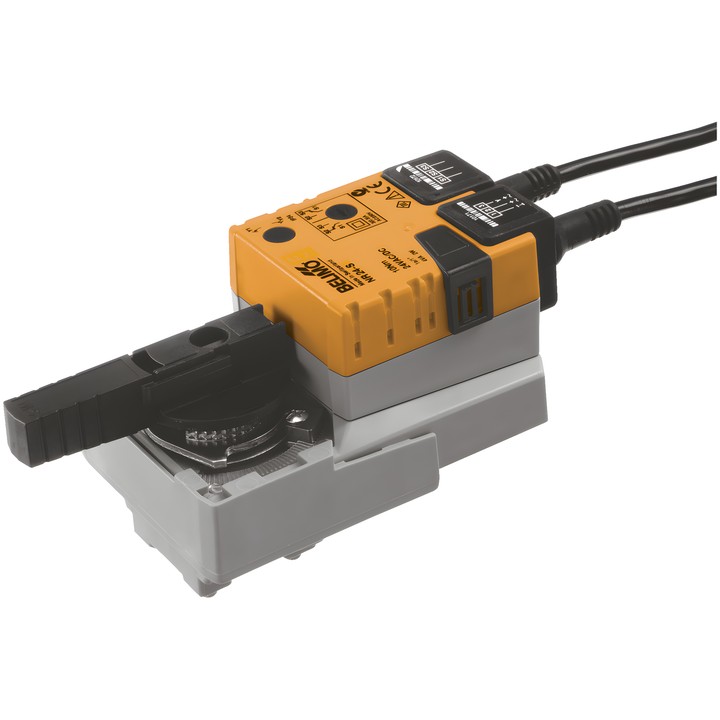

Belimo NR24A-S - rotary actuator for ball valves

Belimo NR24A-S - rotary actuator for ball valves

Belimo
zł804.32
VAT included
zł653.92 tax excluded

Belimo NR24A-S rotary actuator for ball valves. Torque 10 Nm, AC/DC 24 V supply, Close/Open or 3-point control, and running time 90 s / 90°.

Equipped with an integrated 1x SPDT auxiliary switch with an adjustable switching point of 0...100% and manual override by push button.

Delivery in approx. 14 days
Share

Belimo NR24A-S rotary actuator

The NR24A-S is a rotary actuator for ball valves. It has mechanical angle-of-rotation stops, a position indicator, and an integrated auxiliary switch.

Key features and parameters

  • Torque: 10 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Running time: 90 s / 90°.
  • Auxiliary switch: 1x SPDT, adjustable switching point 0...100%.
  • Power consumption during operation: 2 W; in standby position: 0.2 W; for wire sizing: 4 VA.
  • Manual override by push button, with locking option.
  • Power and control connection, and auxiliary switch connection: each via a 1 m cable, 3x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

  • Brand
    Belimo
  • Reference
    NR24A-S
  • EAN13
    7630498113444

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Auxiliary contacts
    1x SPDT

Techniczna karta katalogowa

Download (1.01MB)

Instrukcja montażu

Download (630.55KB)

Techniczna karta katalogowa – NR24A-S

Download (1.01MB)

EU Declaration of Conformity – NR24A-S

Download (25.63KB)

Environmental Declaration – NR..

Download (72.77KB)
