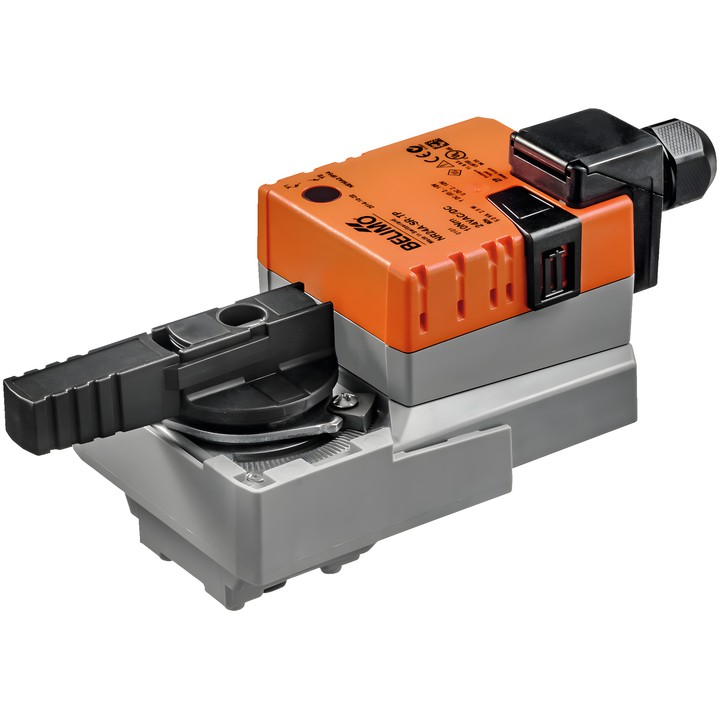

Belimo NR24A-SR-TP - rotary actuator for ball valves

Belimo NR24A-SR-TP - rotary actuator for ball valves

Belimo
zł911.37
VAT included
zł740.95 tax excluded

Modulating rotary actuator for ball valves, with a torque of 10 Nm and an AC/DC 24 V supply. The control range and position feedback signal are 2...10 V.

The motor running time is 90 s / 90°. The actuator has connection terminals and an IP54 degree of protection.

Delivery in approx. 14 days
Share

Belimo NR24A-SR-TP rotary actuator

NR24A-SR-TP is a modulating rotary actuator for ball valves. The control signal Y determines the actuator position, while the feedback voltage U provides an electrical indication of the valve position.

Key features and specifications

  • Motor torque: 10 Nm.
  • Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Control range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 90 s / 90°.
  • Power consumption during operation: 2.5 W; at rest: 0.4 W; for cable sizing: 5 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Manual adjustment using a push-button with locking option; mechanical position indicator and adjustable angle of rotation with mechanical stops.

The actuator is mounted directly on the ball valve using a single central screw. It is protected against overload and stops automatically when the end stop is reached.

  • Brand
    Belimo
  • Reference
    NR24A-SR-TP
  • EAN13
    7630498113468

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    5 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2

Techniczna karta katalogowa

Download (1.23MB)

Instrukcja montażu

Download (203.36KB)

EU Declaration of Conformity – NR24A-SR-TP

Download (32.8KB)

Environmental Declaration – NR..

Download (72.8KB)
