Belimo NVKC24A-MP-TPC - linear actuator for globe valves

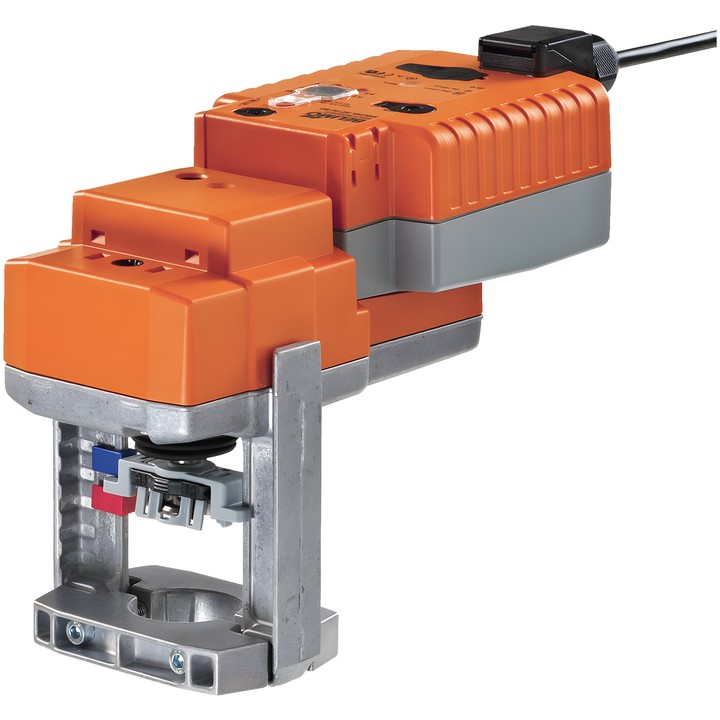

Belimo NVKC24A-MP-TPC actuator

Communicating actuator for 2- and 3-way globe valves. If the power supply fails, energy stored in the capacitors moves the valve to the configured safety position, taking into account the power-fail delay (PF).

Key features and parameters

• Actuating force: 1000 N; stroke: 20 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Modulating control and MP-Bus communication; max. 8 MP-Bus nodes.
• Operating range Y: 2...10 V; feedback signal U: 2...10 V.
• Motor running time: 35 s / 20 mm, adjustable 35...90 s; travel time to the safety position: 35 s / 20 mm.
• Safety position adjustable over 0...100% of the stroke; power-fail delay PF: 2 s, adjustable 0...10 s.
• Processing of signals from sensors connected to the actuator and transmission via MP-Bus.
• Manual adjustment using a push-button; adaptation of the setting range.
• Power consumption during operation: 4.5 W; at rest: 1.5 W; wire sizing power: 9 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm², 4 mm² terminal.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
