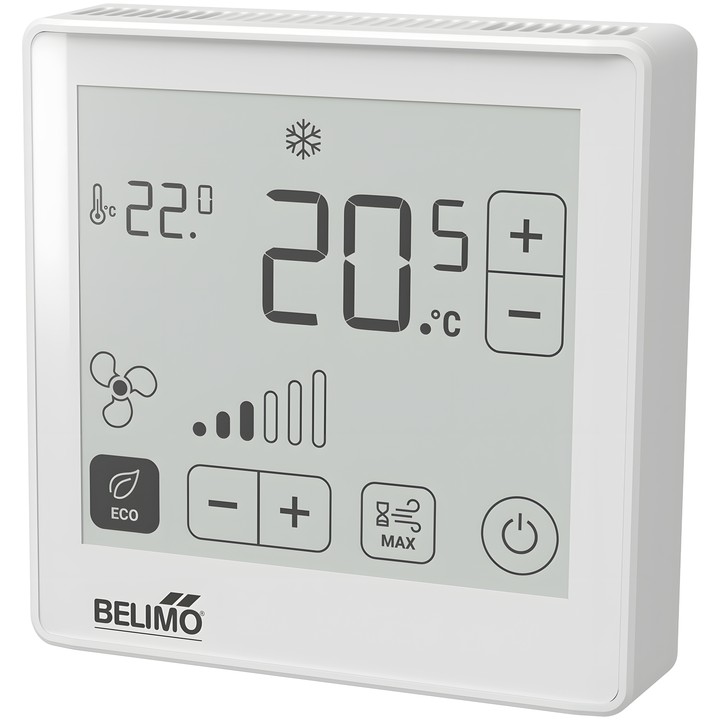

Belimo P-22RT-1800D-1 - room unit with temperature measurement

Name: Belimo P-22RT-1800D-1 - room unit with temperature measurement
Brand: Belimo
SKU: P-22RT-1800D-1
Price: 746.68 PLN
Availability: BackOrder

Belimo

zł746.68

VAT included

zł607.06 tax excluded

Belimo P-22RT-1800D-1 room unit with active temperature measurement in the range 0...50°C [32...122°F]. Features a touch ePaper display, MP-Bus communication and NFC.

AC/DC 24 V supply. The device has 3 analog outputs with selectable 0…10 V, 0…5 V, 2…10 V or 4…20 mA signals using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo P-22RT-1800D-1

Room sensor and setpoint unit for temperature measurement. Model P-22RT-1800D-1 features a touch ePaper display and supports MP-Bus communication. The device can be configured using Belimo Assistant 2.

Key features

Measured value: temperature; measuring range 0...50°C [32...122°F].
Power supply: AC/DC 24 V.
Outputs: 3x AO; selectable signal 0…10 V (factory setting), 0…5 V, 2…10 V or 4…20 mA.
Communication: MP-Bus; NFC support.
Display: touch ePaper, 69x62 mm.
Electrical connection: spring-clamp terminal 0.2...2.5 mm².
Protection rating: IP30.
Enclosure: polycarbonate, white, RAL 9003; surface mounting.
Dimensions: 86x86x18 mm (HxWxD).

As standard, AO1 is assigned to temperature, AO2 to the temperature setpoint, and AO3 is disabled for the 22RT-... version. Analog outputs AO1, AO2 and AO3 can be configured via NFC.
