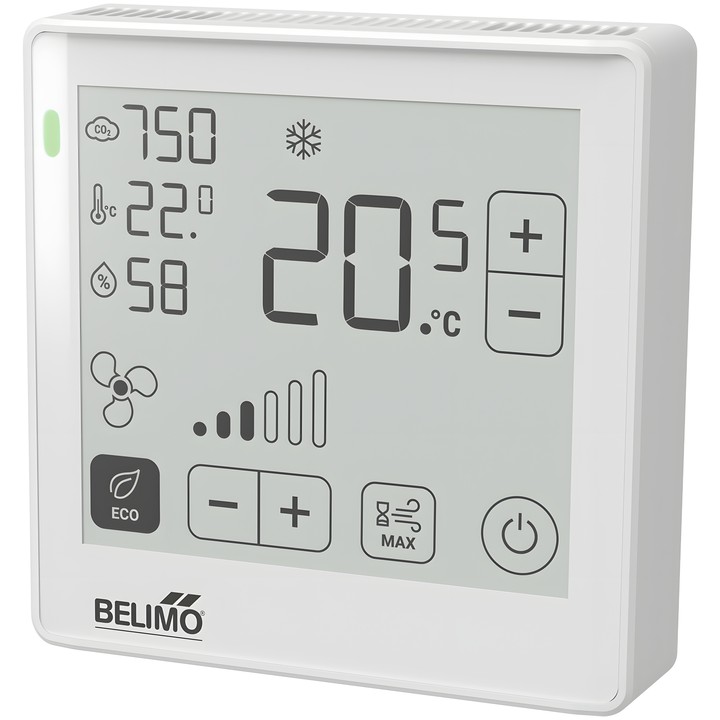

Belimo P-22RTM-1900D-1 - room CO₂, humidity and temperature controller

Name: Belimo P-22RTM-1900D-1 - room CO₂, humidity and temperature controller
Brand: Belimo
SKU: P-22RTM-1900D-1
Price: 1970.46 PLN
Availability: OutOfStock

Belimo

zł1,970.46

VAT included

zł1,602.00 tax excluded

The Belimo P-22RTM-1900D-1 room controller measures CO₂, relative humidity and temperature. It features a touch ePaper display and an LED.

AC/DC 24 V power supply, MP-Bus communication and three voltage outputs configurable to 0...5 V, 0...10 V or 2...10 V. Configuration is available via NFC using Belimo Assistant 2.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P-22RTM-1900D-1

Room controller for measuring CO₂, relative humidity and temperature, and for controlling room temperature and/or ventilation. The touch ePaper display enables adjustment of settings; the LED indicates the CO₂ level.

Key features and specifications

Measured values: CO₂, relative humidity, dew point and temperature.
CO₂ measuring range: factory setting 0...2000 ppm; dual-channel NDIR measuring technology.
Humidity measuring range: factory setting 0...100% RH.
Temperature measuring range: 0...50°C [32...122°F].
Power supply: AC/DC 24 V.
Communication: MP-Bus; configuration via NFC using Belimo Assistant 2.
Outputs: 3 x 0...5 V, 0...10 V, 2...10 V; range selection via NFC, factory setting 0...10 V, min. resistance 5 kΩ.
Interface: touch ePaper display and LED; LED signalling can be configured and switched off using Belimo Assistant 2.
Housing: PC, white, RAL 9003; IEC/EN IP30 protection rating.
Electrical connection: spring terminals 0.25...1.5 mm².
Dimensions: 86x86x24 mm (HxWxD).

Brand

Belimo
Reference

P-22RTM-1900D-1
EAN13

7630498110115

Electrical connection

Terminals
Measured values

CO₂ Temperature Humidity
Output signal

0...5 V 0...10 V 2...10 V MP-Bus
Humidity measuring range

Factory setting: 0...100% RH
AC/DC voltage

AC/DC 24 V
Temperature measuring range

0...50°C [32...122°F]
Active sensor output note

Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC min. resistance 5 kΩ
Display type

ePaper touchscreen and LED
Output voltage range [Range]

2 x 0...5 V, 0...10 V, 2...10 V (Type P-22RT-1900D-1) 3 x 0...5 V, 0...10 V, 2...10 V (Type P-22RTH-1900D-1, P-22RTM-1900D-1)
Communication

MP-Bus
CO₂ measuring range

Factory setting: 0...2000 ppm
