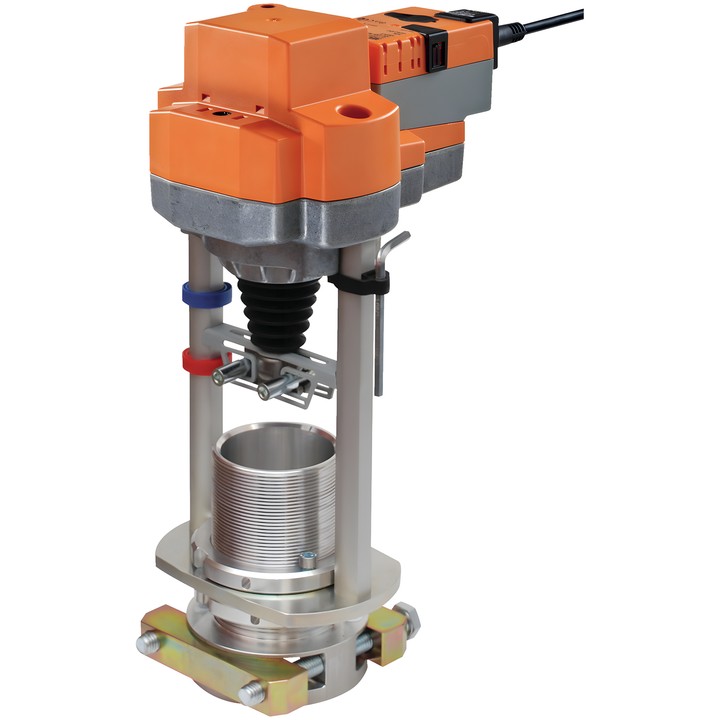

Belimo RV24A-MF-RE - linear actuator for globe valves

Name: Belimo RV24A-MF-RE - linear actuator for globe valves
Brand: Belimo
SKU: RV24A-MF-RE
Price: 4945.63 PLN
Availability: BackOrder

Belimo

zł4,945.63

VAT included

zł4,020.84 tax excluded

Configurable Belimo RetroFIT+ actuator for 2- and 3-way globe valves. Force 4500 N, AC/DC 24 V supply, 2...10 V modulating control and 50 mm stroke.

Travel time is 150 s / 50 mm, and the protection rating is IP54. The actuator has a 1 m connection cable, 4x 0.75 mm², and manual override by push-button with locking option.

Delivery in approx. 14 days

Belimo RV24A-MF-RE actuator

RV24A-MF-RE is a configurable RetroFIT+ linear actuator designed for 2- and 3-way globe valves. It is controlled by an analogue Y signal, while voltage U is used to indicate the actuator position.

Key features and specifications

Actuator force: 4500 N; stroke: 50 mm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Modulating control: Y operating range 2...10 V; position feedback signal U 2...10 V.
Motor travel time: 150 s / 50 mm; adjustable travel time: 90...150 s.
Power consumption during operation: 6 W; in standby position: 1.5 W; sizing power: 11 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Manual override by push-button with locking option; mechanical position indicator.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Parameters can be configured using Belimo Assistant 2 or ZTH EU. On first power-up, the actuator adapts its operating range to the mechanical adjustment range.
