Belimo S2A/500 GR - auxiliary switch for actuators

Name: Belimo S2A/500 GR - auxiliary switch for actuators
Brand: Belimo
SKU: S2A/500 GR
Price: 845.01 PLN
Availability: OutOfStock

Belimo

zł845.01

VAT included

zł687.00 tax excluded

Clip-on auxiliary switch, 2x SPDT, for damper actuators and rotary actuators. Used to signal position or perform switching at a selected setting angle.

Switching points are adjustable across 0...100%. Grey housing; connection: 5 m cable, 6x 0.75 mm², FRNC (halogen-free).

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

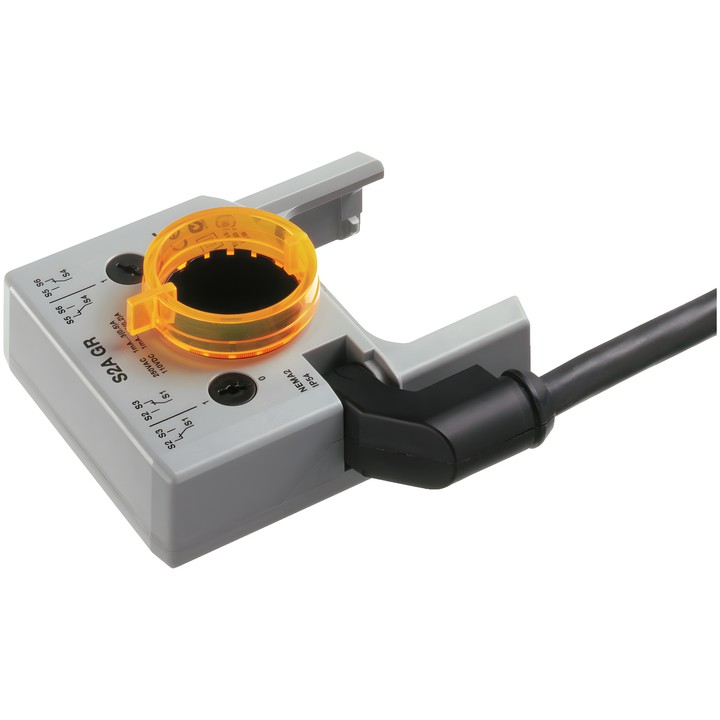

Belimo S2A/500 GR auxiliary switch

Clip-on module with two changeover contacts for damper actuators and rotary actuators. Enables position signalling or switching at a selected setting angle. Switching points can be set using the dial across the actuator's entire rotation range; preliminary setting is possible using the scale.

Key features and technical data

Auxiliary contacts: 2x SPDT; adjustable switching points 0...100%.
Contact rating: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V / 1 mA...0.5 A (0.2 A inductive; L/R = 3.4 ms), DC 5 V...DC 110 V.
Connection: 5 m cable, 6x 0.75 mm², FRNC (halogen-free).
Degree of protection: IP54; NEMA 2; UL Enclosure Type 2 housing.
Ambient temperature: -30...50°C [-22...122°F].
Cover and housing base colour: grey.
Mounted directly at the damper actuator shaft clamp or on the rotary actuator position indicator.

Adjust the auxiliary switch only after disconnecting the power supply.
