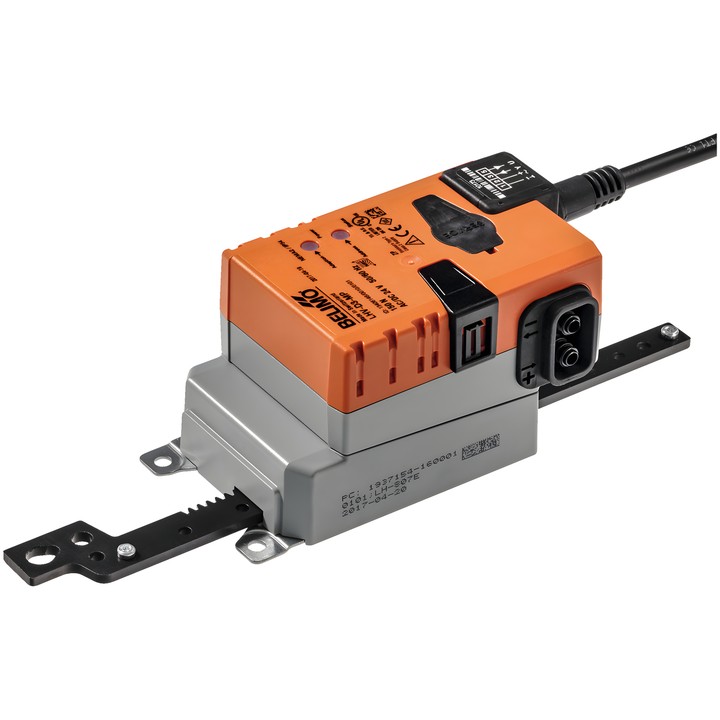

Belimo LHV-D3-MP - VAV-Compact flow controller with linear actuator

Name: Belimo LHV-D3-MP - VAV-Compact flow controller with linear actuator
Brand: Belimo
SKU: LHV-D3-MP
Price: 1889.28 PLN
Availability: OutOfStock

Belimo

zł1,889.28

VAT included

zł1,536.00 tax excluded

Belimo LHV-D3-MP is a VAV-Compact device with a VAV controller, dynamic Δp sensor and linear actuator with a force of 150 N. Designed for VAV units in the comfort zone; it supports VAV/CAV control and position control.

AC/DC 24 V power supply, MP-Bus communication and 0/2...10 V modulating control. Differential pressure measuring range: 0...500 Pa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LHV-D3-MP – VAV-Compact device

The device combines a VAV controller, a Belimo D3 dynamic Δp sensor and a linear actuator. It is used to control VAV units in the comfort zone; available functions include VAV/CAV flow control and position control.

Key features and specifications

Actuator force: 150 N; stroke: 100 mm.
Power supply: AC/DC 24 V, 50/60 Hz.
Power consumption: 2.5 W during operation, 1.5 W in the resting position; wire sizing power: 4.5 VA.
MP-Bus communication; 0/2...10 V modulating control. Operating range Y: 2...10 V, configurable range Y: 0...10 V; position feedback signal U: 2...10 V.
Belimo D3 dynamic flow sensor; functional differential pressure range: 0...500 Pa.
Manual control by button, with locking option.
Power and control connection: 1 m cable, 4x 0.75 mm².
IEC/EN IP54 degree of protection; IEC/EN protection class III, Protective Extra-Low Voltage (PELV).
Ambient temperature: 0...50°C [32...122°F].
Service socket and NFC interface; parameter configuration using Belimo Assistant 2.
