Belimo EF24A-MP - rotary actuator for dampers with safety function

Belimo EF24A-MP - rotary actuator for dampers with safety function

Belimo
zł3,003.62
VAT included
zł2,441.97 tax excluded

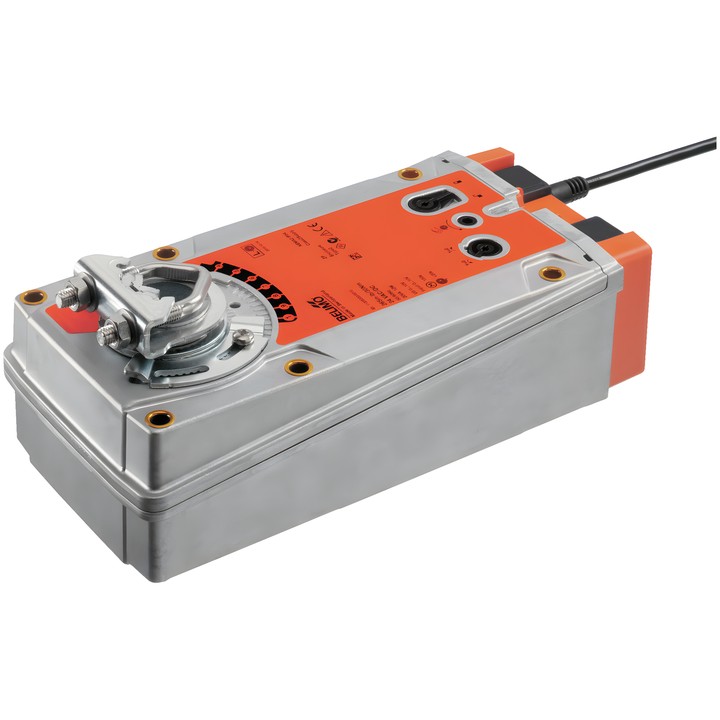

Belimo EF24A-MP communicating rotary actuator for dampers with a safety function provided by a return spring. Torque 30 Nm, AC/DC 24 V power supply and MP-Bus communication. If the power supply fails, the spring moves the damper to the safety position.

The motor running time is 150 s / 90°, adjustable within the range 60...150 s. The actuator supports 2...10 V analogue control and is fitted with a universal clamp for shafts 12...26.7 mm.

Delivery in approx. 14 days
Share

Belimo EF24A-MP – actuator for dampers

This communicating rotary actuator with a safety function is designed to control dampers in stationary heating, ventilation and air-conditioning systems. During operation, the drive positions the damper and tensions the return spring. If the power supply is interrupted, the spring moves the damper to the safety position.

Main features and specifications

  • Motor and safety-function torque: 30 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • MP-Bus communication; maximum 8 MP-Bus nodes.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; adjustable running time: 60...150 s.
  • Safety-function running time: <20 s @ -20...50°C, <60 s @ -30°C.
  • Rotation angle: max. 95°, adjustable using mechanical end stops.
  • Manual operation using a crank and locking switch; mechanical position indicator.
  • Mechanical connection: universal clamp for shafts 12...26.7 mm.
  • Power and control connection: 1 m cable, 4x 0.75 mm², halogen-free.
  • Protection rating: IP54; ambient temperature: -30...50°C [-22...122°F].

In analogue mode, voltage U indicates the damper position. When operating via MP-Bus, connection U serves as the communication interface and does not provide an analogue measurement voltage. The actuator also allows connection of a passive or active sensor, or a switching contact, and transmission of its signal via MP-Bus.

  • Brand
    Belimo
  • Reference
    EF24A-MP
  • EAN13
    7630498119705

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    9.5 W
  • Power consumption (holding)
    4.5 W
  • Rated power
    16 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • Manual override
    Using the crank and locking switch
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜20 s
  • Variable motor running time
    60...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    30 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 12...26.7 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (2.28MB)

Instrukcja montażu

Download (1.26MB)

Techniczna karta katalogowa – EF24A-MP

Download (2.28MB)

EU Declaration of Conformity – EF24A-MP

Download (32.76KB)

Environmental Declaration – EF..

Download (72.14KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
