Belimo SM24P-SR - rotary actuator for dampers

Belimo SM24P-SR - rotary actuator for dampers

Belimo
zł1,633.34
VAT included
zł1,327.92 tax excluded

Modulating RobustLine rotary actuator for dampers, with a torque of 20 Nm. AC/DC 24 V supply, control range 2...10 V and running time 150 s / 90°.

IP66/67 protection rating. The actuator has a universal clamp 14...20 mm and a 1 m connection cable, 4x 0.75 mm², FRNC (halogen-free).

Delivery in approx. 14 days
Share

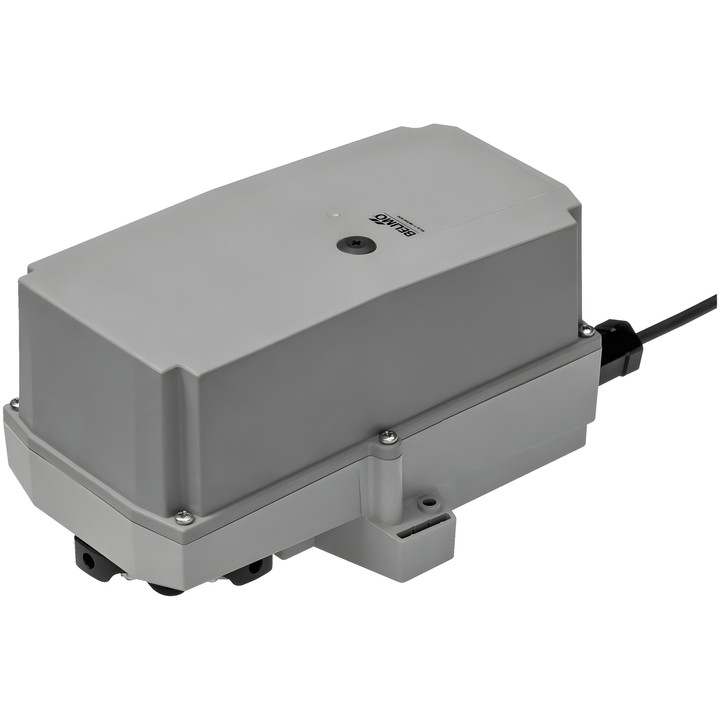

Belimo SM24P-SR – actuator for dampers

Modulating RobustLine rotary actuator designed to control dampers in HVAC systems, comparable industrial systems and building services installations. According to the documentation, it is suitable for air dampers with an area of up to approx. 4 m².

Key features and parameters

  • Torque: 20 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°, limited by mechanical stops on both sides.
  • Power consumption during operation: 2 W; in the rest position: 0.4 W; power rating for cable sizing: 4 VA.
  • Direction of movement selected by a 0/1 switch; manual adjustment by push-button with locking option.
  • Mechanical connection: universal clamp 14...20 mm; mechanical position indicator.
  • Electrical connection: cable 1 m, 4x 0.75 mm², FRNC (halogen-free).
  • IEC/EN protection rating: IP66/67; ambient temperature: -30...50°C [-22...122°F].

The actuator has a current-limiting function in the rest position and a constant running time independent of the load. According to the documentation, the housing provides protection against corrosion, chemicals, UV radiation, moisture and condensation.

  • Brand
    Belimo
  • Reference
    SM24P-SR
  • EAN13
    7630498114564

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    4 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    DC 2...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 14...20 mm

Techniczna karta katalogowa

Download (932.38KB)

Instrukcja montażu

Download (552.43KB)

EU Declaration of Conformity – SR24P, SR24P-R, SR24P-SR, SM24P, SM24P-SR

Download (21.53KB)

Environmental Declaration – SM..P..

Download (72.51KB)
