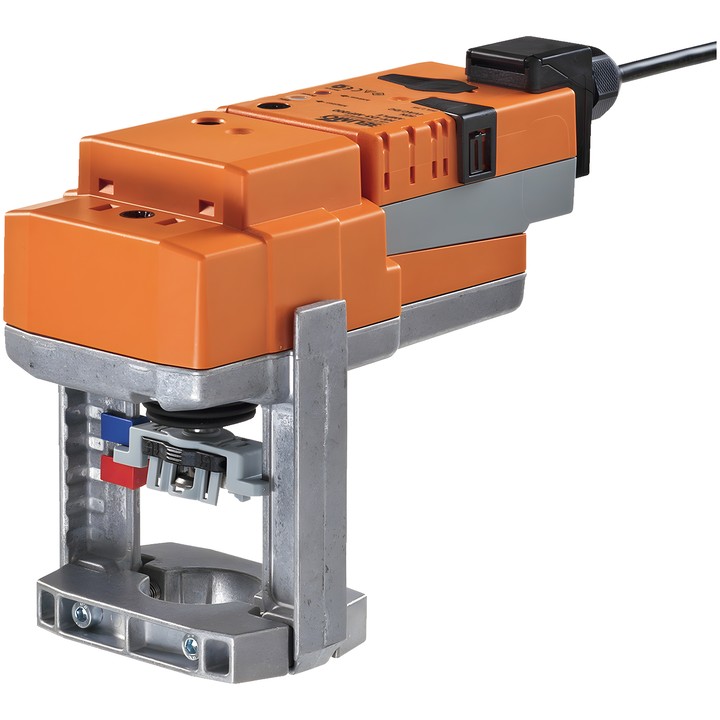

Belimo SVC24A-MP-TPC - linear actuator for globe valves

Belimo SVC24A-MP-TPC

Communicating actuator for 2-way and 3-way globe valves, designed for stationary heating, ventilation and air-conditioning installations. It can operate with an analogue Y control signal or receive a digital control signal via MP-Bus.

Key features and specifications

• Actuator force: 1500 N; stroke: 20 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Power consumption during movement: 4 W; in the rest position: 1.5 W; power consumption for wire sizing: 6 VA.
• Y control signal range: 2...10 V; U position feedback signal: 2...10 V.
• MP-Bus communication; maximum 8 MP-Bus nodes.
• Running time: 35 s / 20 mm, adjustable within the range 35...90 s.
• Converts signals from a connected passive or active sensor, or a switching contact, for transmission via MP-Bus.
• Manual adjustment using a push-button, with the option to lock it; setting range adaptation on first power-up.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm²; 4 mm² terminal.
• IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
