Belimo SVC24A-SR-TPC - linear actuator for globe valves

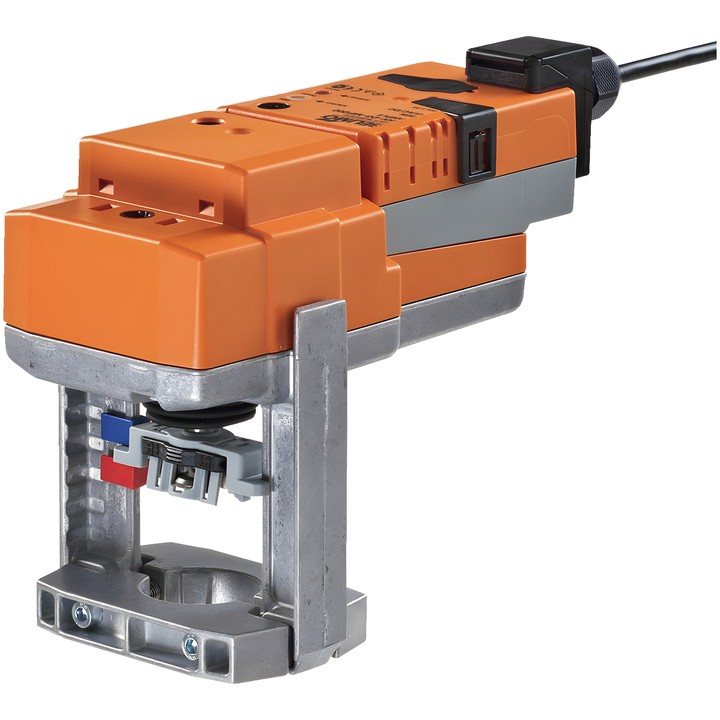

Belimo SVC24A-SR-TPC

Modulating linear actuator designed for 2- and 3-way globe valves. The actuator position is determined by the Y control signal, while voltage U is used for electrical position indication.

Key features and parameters

• Actuating force: 1500 N; stroke: 20 mm; running time: 35 s / 20 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Modulating control: Y operating range 2...10 V; U position feedback signal 2...10 V.
• Power consumption during operation: 4 W; at rest: 1.5 W; for wire sizing: 6 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm² (terminal 4 mm²).
• Manual adjustment by push-button with locking option; mechanical position indicator.
• Setting range adaptation: manual, automatic on first power-up.
• IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).

The actuator is protected against overload and stops automatically when the end stop is reached. Direct mounting on the valve is carried out using shaped clamping jaws.
