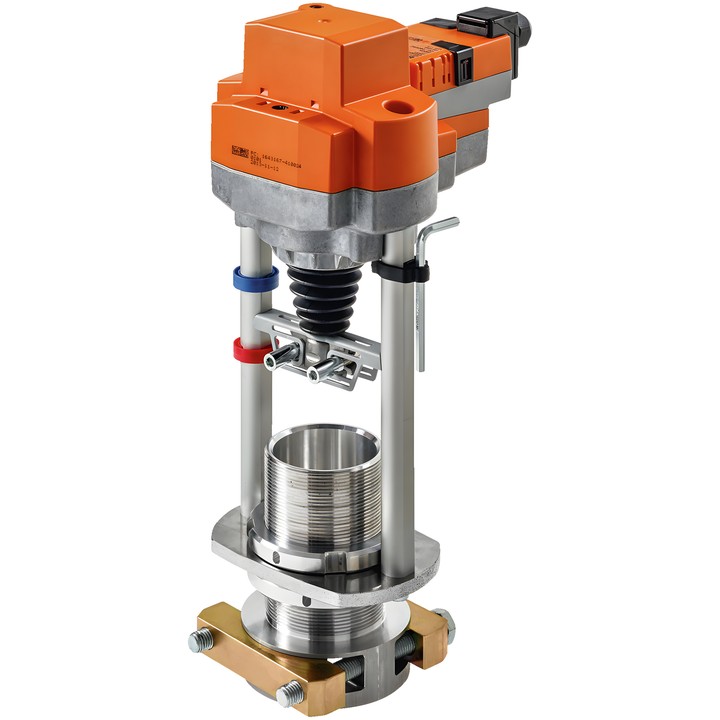

Belimo SVL230A-RE - linear actuator for globe valves

Name: Belimo SVL230A-RE - linear actuator for globe valves
Brand: Belimo
SKU: SVL230A-RE
Price: 3424.39 PLN
Availability: BackOrder

Belimo

zł3,424.39

VAT included

zł2,784.06 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. Thrust 1500 N, power supply AC 100...240 V, Close/Open or 3-point control, and 50 mm stroke.

Motor running time is 150 s / 50 mm. The actuator has push-button manual override with locking option, terminal connection, and IP54 protection rating.

Delivery in approx. 14 days

Belimo SVL230A-RE – actuator for globe valves

RetroFIT+ actuator designed for installation on 2- and 3-way globe valves. For installation on valves from other manufacturers, a universal valve neck adapter and a universal valve stem adapter are provided.

Key features and parameters

Actuator thrust: 1500 N; stroke: 50 mm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point; motor running time: 150 s / 50 mm.
Power consumption during operation: 3.5 W; in standby: 1 W; for cable sizing: 6.5 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm).
Push-button manual override with locking option; mechanical position indicator.
Overload protection and automatic stop when the end stop is reached.
IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.

With pulsed 3-point control, the controller must stop the pulses once the end position has been reached.
